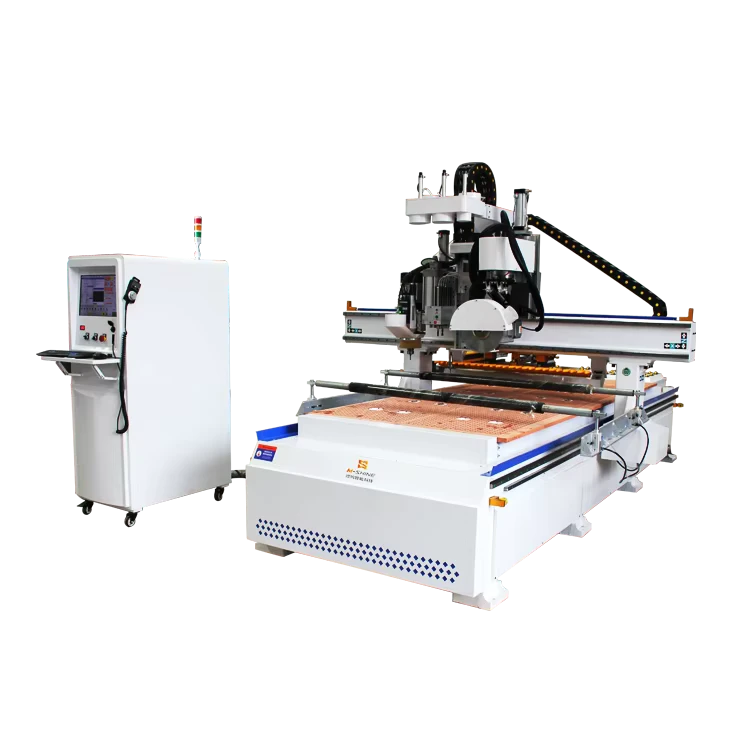

Wood Carving CNC Router for Furniture Machine for Wood Furniture with Vacuum Table

Wood Carving CNC Router for Furniture Machine for Wood Furniture with Vacuum Table
  • Wood Carving CNC Router for Furniture Machine for Wood Furniture with Vacuum Table

    • Wood Carving CNC Router for Furniture Machine for Wood Furniture with Vacuum Table

    Request a Quote
    number of axes5voltage380 V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To OperateAccessory TypeDust collection
    core componentsMotor, Pump, Gearcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    weight (kg)2600range of spindle speed(r.p.m)0 - 24000
    positioning accuracy (mm)0.02travel (x axis)(mm)1300
    travel (y axis)(mm)2800repeatability (x/y/z) (mm)0.02
    Spindle Motor Power (kw)9kw(12.07hp)dimension(l*w*h)2800MM*1300MM*200MM(110.24in*51.18in*7.87in)
    Working SpindleChina HQD 9KW spindle (speed 0-24000/MIN)Drilling deviceChina HQD 4*5 row drill set
    Spindle hanging plate750MM thickness overall oxidation treatmentTool change magazine12 tool change linear magazine (supports 8-16 customization)
    Servo MotorChina Leadshine 1500W pure servo motorServo DriverChina Leadshine Driver
    Control SystemTaiwan LNC Control systemInverterChina Brand7.5KW and 11KW Fuling inverter
    TrackXYZ Axis 30 Taiwan Hiwin TrackRack1.5M German YYC rack
