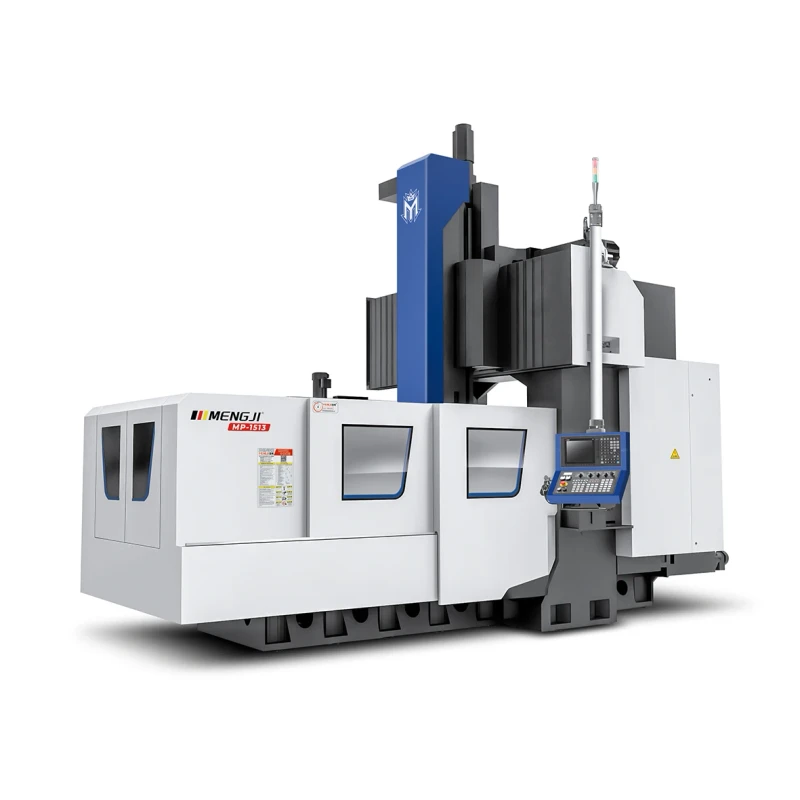

Gantry Machining Center MJ 1513 High Rigidity 3 Axis CNC Machine X1500 Y1300 Z700 Large travel
Gantry Machining Center MJ 1513 High Rigidity 3 Axis CNC Machine X1500 Y1300 Z700 Large travel
| type | Gantry Machining Center | table travel (x) (mm) | 1500 |
| table travel (y) (mm) | 1300 | table travel (z) (mm) | 700 |
| repeatability (x/y/z) (mm) | 0.012/0.012/0.006 | positioning accuracy | 0.015/0.015/0.008 |
| spindle taper | BT40-150 | no. of spindles | 1 |
| tool magazine capacity | 24 | cnc control system | Mitsubishi M80B |
| machining capacity | Heavy duty processing | voltage | 380V-50HZ |
| table size | 1500*1200 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Multifunctional | weight (t) | 15 |
| max. table load(kg) | 1500 | dimension(l*w*h) | 5200*3000*3100 |
| range of spindle speed | 1 - 12000 | rapid feed speed | 48 - 50 |
