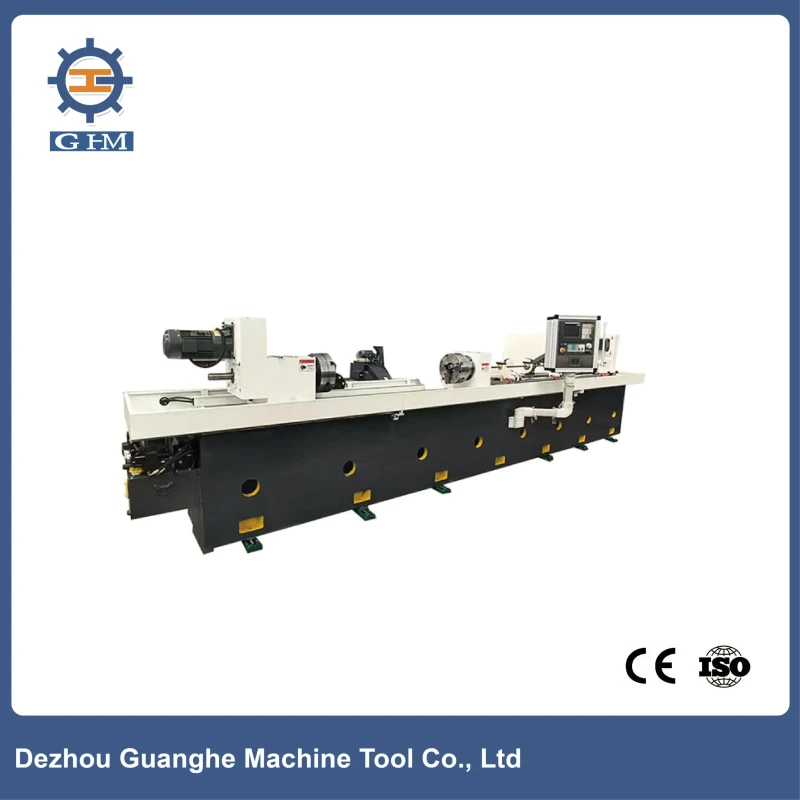

Spindle Spinle CNC Deep Hole Gun Drilling Machine with Motor

Spindle Spinle CNC Deep Hole Gun Drilling Machine with Motor
  • Spindle Spinle CNC Deep Hole Gun Drilling Machine with Motor

    • Spindle Spinle CNC Deep Hole Gun Drilling Machine with Motor

    Request a Quote
    max. drilling dia. (mm)50typeGun Drilling Machine
    voltage380V/220Vcnc or notCNC
    machinery test reportProvidedcore componentsMotor, PLC, Other
    video outgoing-inspectionProvidedkey selling pointsCompetitive Price And Best Quality
    range of spindle speed(r.p.m)1 - 6000 r.p.mpower (kw)22
    weight (kg)5000drilling speed5~1000mm
    dimension(l*w*h)5000*3500*2500mm(196.85*137.80*98.43in)Feed Speed Range≤1000 mm/min
    Rapid Traverse Speed≤3000 mm/minHole Straightness (Deflection)≤0.5/500mm
    Hole Dimensional AccuracyIT7~IT11Hole Surface RoughnessRa0.8~Ra3.2
    Drill Spindle Motor Power7.5 KW (Servo Motor)Oil Pump Motor Power7.5 KW
    Feed Motor Power3 KWHydraulic System Max. Flow Rate100 L/Min
    Hydraulic System Filtration Precision20 um
