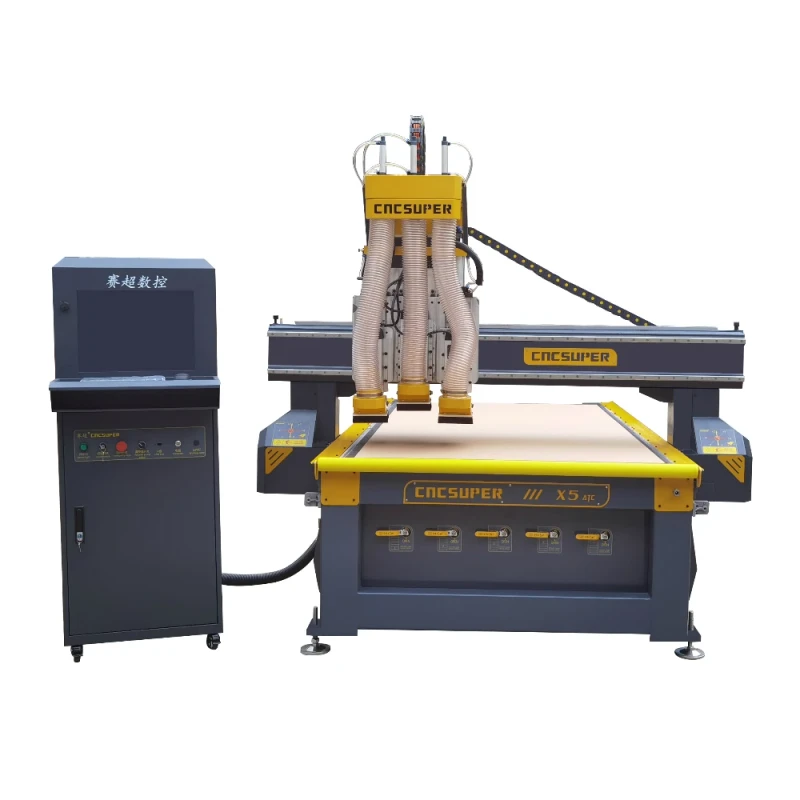

Professional High Precision Pneumatic Atc Furniture CNC Router Machine High Quality Wood Router

Professional High Precision Pneumatic Atc Furniture CNC Router Machine High Quality Wood Router
  • Professional High Precision Pneumatic Atc Furniture CNC Router Machine High Quality Wood Router

    • Professional High Precision Pneumatic Atc Furniture CNC Router Machine High Quality Wood Router

    Request a Quote
    number of axes3voltage380V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsHigh Productivitycore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2100
    range of spindle speed(r.p.m)1 - 18000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)6
    Working area(XY)1300*2500mmZ travel height200mm, Z axis with coupling
    Positional accuracy±0.03/300mmSpindle power3PCS 6KW air cooling spindle
    NO. of revolution18000rpm/minX.Y.Z axis railTaiwan HIWIN guiding rail
    Motor and driveTaiwan DELTA servo motors and drivesLubricationATC lubrication
    MotorServo Motors and drivesMax Cutting Speed20000mm/min
