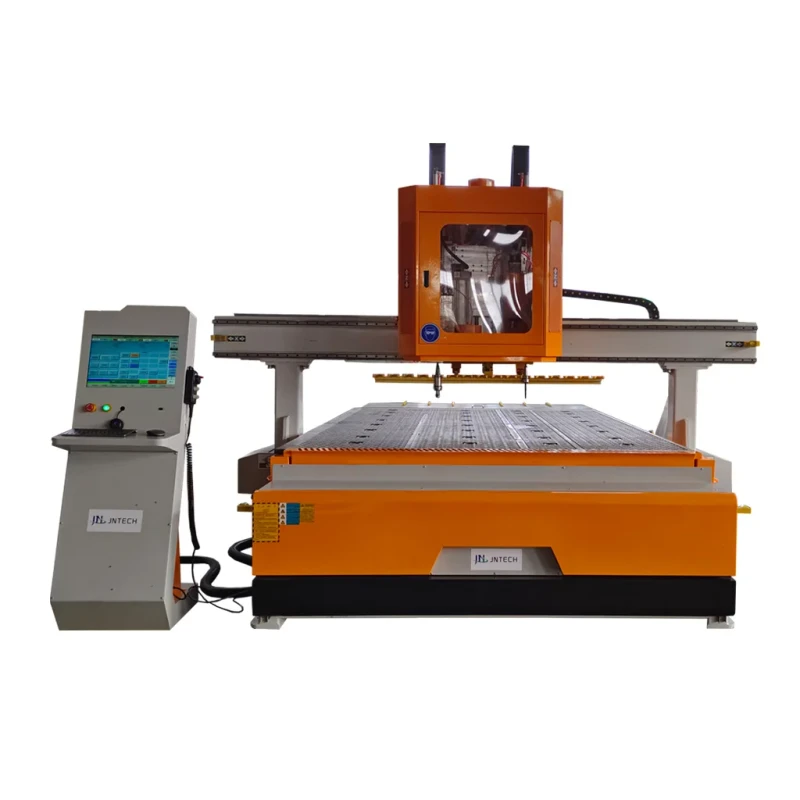

ATC CNC Wood Router Machine for Wooden Drilling Cutting Milling with Italy Drilling Bank 9+3+1
ATC CNC Wood Router Machine for Wooden Drilling Cutting Milling with Italy Drilling Bank 9+3+1
| Working Table Size(mm) | 2000×3000 | number of axes | 3 |
| voltage | 380V | machine type | CNC Router |
| No. of Spindles | Multi | key selling points | Multifunctional |
| core components | Bearing, Motor, Pump, Gear, Engine, Gearbox, spindle, inverter, driver | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 22 | weight (kg) | 3000 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 2000 mm(78.74in) | travel (y axis)(mm) | 3000 mm(118.11in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 9KW(12.07hp) |
| dimension(l*w*h) | 2000*3000*300mm(78.74*118.11*11.81in) | Product name | 2030 ATC CNC Router with drilling bank |
| Spindle | HQD 9kw air cooling spindle | Control system | Taiwan Syntec 60CB+Computer |
| Transmission | XY-axis:rack Z-axis:ball Screw | Working area | 2000*3000*300mm |
| Inverter | Taiwan Delta B 11KW Inverter | Motor and driver | Japan Yaskawa Sevor Motor |
| Guide rail | HIWIN Square Guide Rail(option PMT. CSK | Working Voltage | 380V/50-60Hz |
| Table Surface | Vacuum table+T solt | Condition | New |
