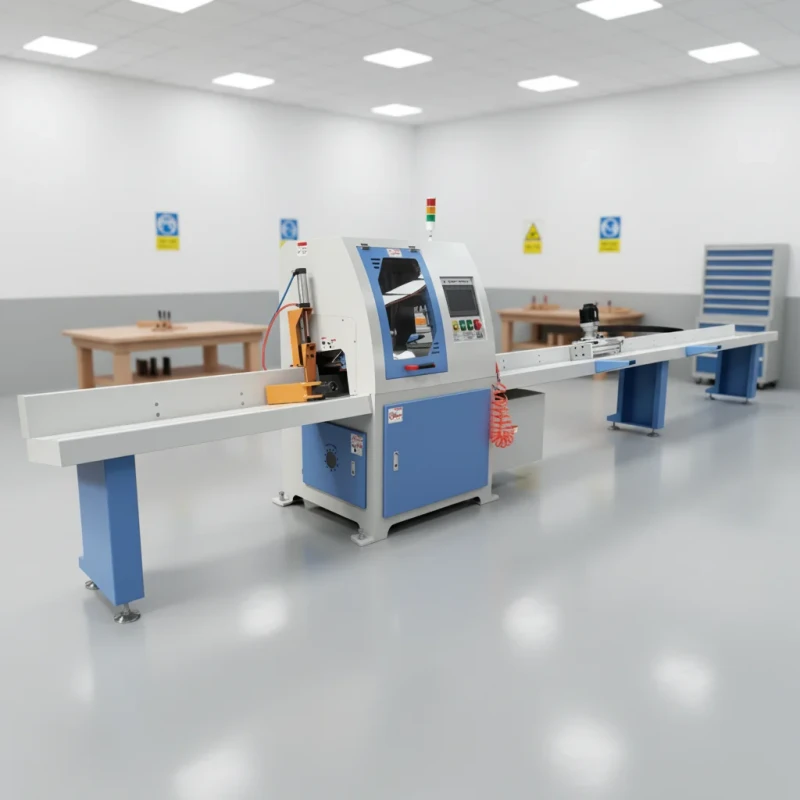

Horizontal Automatic Push Feed Cross Cut Saw for Furniture Production High Precision Cuts High Efficiency

Horizontal Automatic Push Feed Cross Cut Saw for Furniture Production High Precision Cuts High Efficiency
  • Horizontal Automatic Push Feed Cross Cut Saw for Furniture Production High Precision Cuts High Efficiency

    • Horizontal Automatic Push Feed Cross Cut Saw for Furniture Production High Precision Cuts High Efficiency

    Request a Quote
    TypeCircular Sawvoltage380 V
    StyleHorizontaluseWoodworking
    core componentsPLCmachinery test reportProvided
    Key Selling PointsHigh efficientvideo outgoing-inspectionProvided
    weight (kg)1250power (kw)6.25
    dimension(l*w*h)9550*1000*1650Product nameAutomatic Push Feed Crosscut saw
    Feeding Table Length4000mm/6000mm(optional)Cutting Width20-200mm/20-300mm/20-500mm(optional)
    Cutting height10-120mm/10-150mm/10-160mm(optional)Feeding speed35m/min
    Cutting Motor Power5.5kw/7.5kw(optional)Working modeAutomatic feeding, automatic cutting
    Saw blade diameter450mm/550mm(optional)Sawing accuracy±1mm/±0.3mm(optional)
    Pushing transmission modeTiming belt/Rack and pinion(optional)
