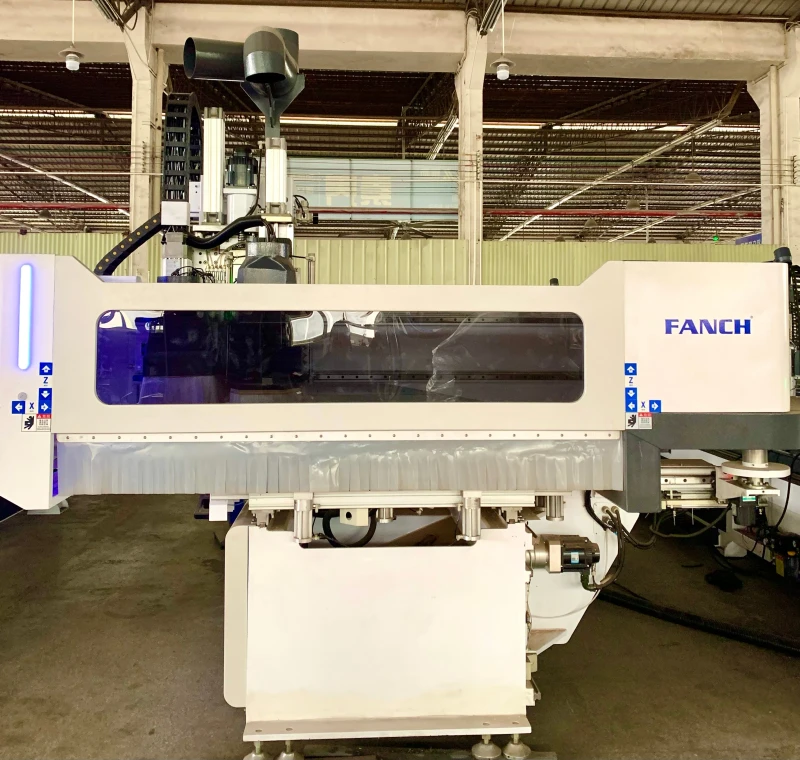

Five Side Drilling Machining Center High Precision CNC Woodworking Machine 6000 24000rpm Spindle 0.05mm MDF Production

Five Side Drilling Machining Center High Precision CNC Woodworking Machine 6000 24000rpm Spindle 0.05mm MDF Production
  • Five Side Drilling Machining Center High Precision CNC Woodworking Machine 6000 24000rpm Spindle 0.05mm MDF Production

    • Five Side Drilling Machining Center High Precision CNC Woodworking Machine 6000 24000rpm Spindle 0.05mm MDF Production

    Request a Quote
    typeDrilling MachineusageMDF Production
    voltage380 Vcore componentsMotor, PLC
    Material TypeWood, PVCvideo outgoing-inspectionProvided
    key selling pointsAutomaticpower (kw)17.5
    weight (kg)2500dimension(l*w*h)3800*2600*1800mm(149.61*102.36*70.87in)
    Max Processing Range1300*2900mmSpindle Speed6000-24000rpm (air-cooled)
    Positioning Accuracy±0.05mmX-axis travel1300mm
    Y-axis travel2900mmZ-axis travelMin. 300 mm
    Spindle power9.0KW automatic tool change spindleRow drill12 vertical + 4 horizontal Italian row drill
    Power Supply380V 50Hz 3PhaseTool magazine capacity12 pcs
