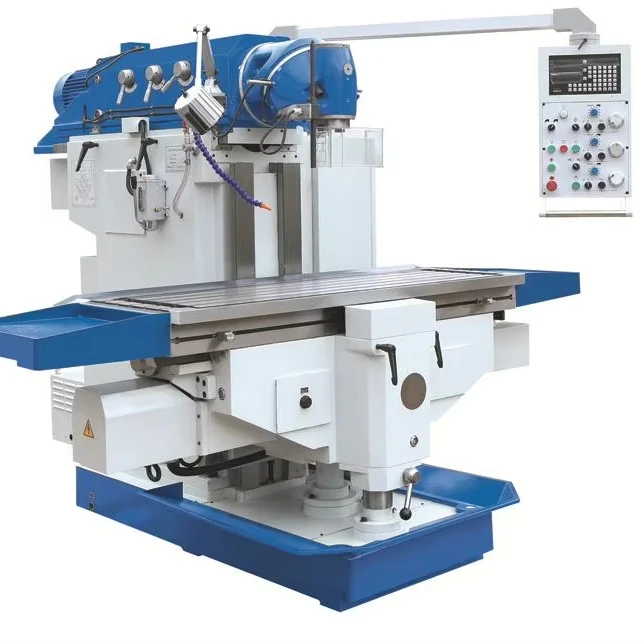

Universal Milling Machines Large Table Milling Machines X5750A
Universal Milling Machines Large Table Milling Machines X5750A
| type | Universal | machining capacity | Heavy Duty |
| table travel (x) (mm) | 1400 | table travel (y) (mm) | 700 mm(27.56in) |
| table travel (z) (mm) | 500 mm(19.69in) | spindle taper | ISO50 |
| voltage | customer request | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | High-Accuracy |
| range of spindle speed(r.p.m) | 30 - 2050 r.p.m | weight (kg) | 4700 |
| max. table load(kg) | 1000 | dimension(l*w*h) | 263x286x208 |
| Item No. | 383113 | Model | X5750A |
| Spindle Taper | ISO50 | Swivel Angle milling head | 360 ° |
| Distance form spinle to table | 50-550mm | Table size | 500x2000mm |
| Range Spindle speed | 30-2050 | Table travel (X/Y/Z) | 1400/700/500 |
| T-slot | 5/18/80mm | Main Motor Power | 7.5kW |
