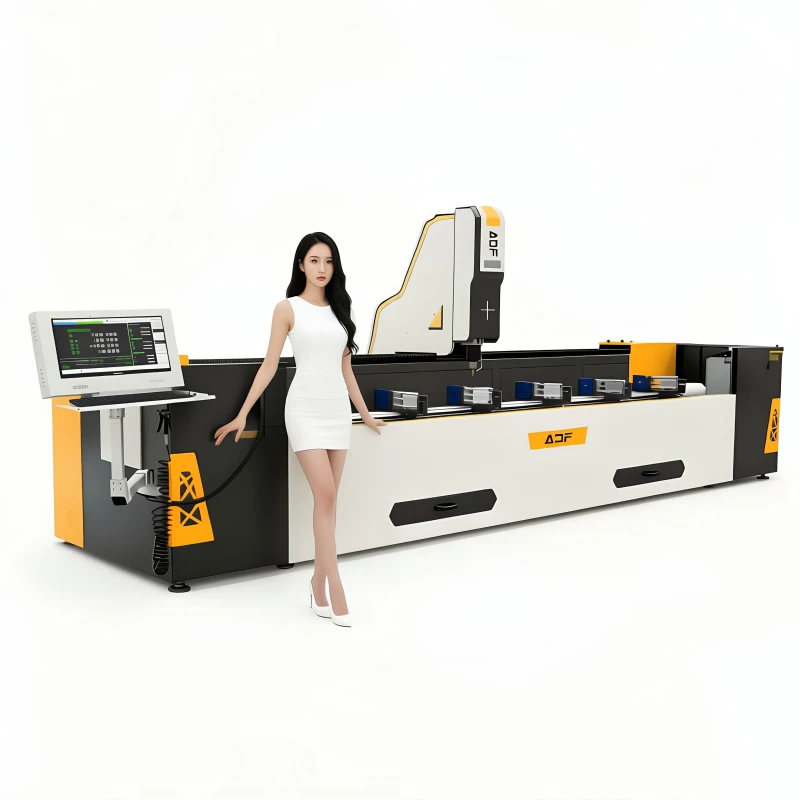

Manufacturer Fully Automatic High Accuracy CNC Drilling Milling Machine for Aluminum Alloy PVC Industrial Profile Door Window
Manufacturer Fully Automatic High Accuracy CNC Drilling Milling Machine for Aluminum Alloy PVC Industrial Profile Door Window
| Applicable Material | PVC, Stainless Steel, Carbon Steel, UPVC, Aluminum | Voltage | 380 V |
| Key Selling Points | High-Accuracy | Core Components | Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC |
| Video outgoing-inspection | Provided | Machinery Test Report | Provided |
| Power(W) | 9.9kW(13.28hp) | Weight | 1500 kg(3306.93lb) |
| Dimension(L*W*H) | 4830*2000*2200mm(190.16*78.74*86.61in) | X-axis stroke | 3500mm |
| Y-axis stroke | 380mm | Z-axis stroke | 330mm |
| X-axis running speed | 0~60m/min | Y-axis running speed | 0~45m/min |
| Z-axis running speed | 0~30m/min | Spindle speed | 18000rpm |
| Spindle power | 6.0kW | Fixture station | 4 |
| Working pressure | 0.6~0.8MPa |
