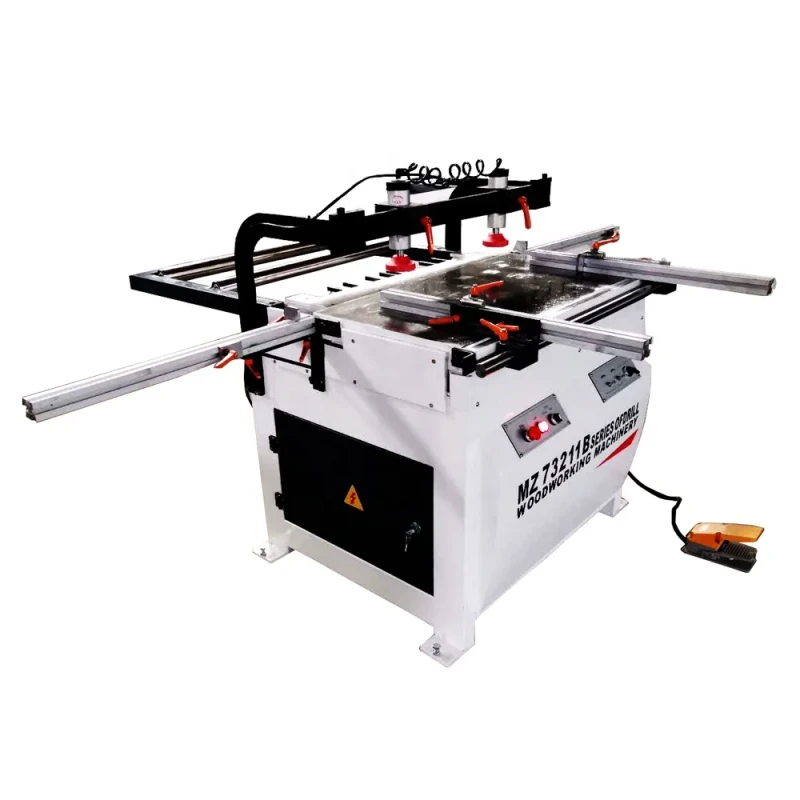

Manufacturer Made High Quality Single Row Multiple Spindle Drilling Machine for Wood Cabinet

Manufacturer Made High Quality Single Row Multiple Spindle Drilling Machine for Wood Cabinet
  • Manufacturer Made High Quality Single Row Multiple Spindle Drilling Machine for Wood Cabinet

    • Manufacturer Made High Quality Single Row Multiple Spindle Drilling Machine for Wood Cabinet

    Request a Quote
    voltage380V/50Hz 3PHS & Customizedcnc or notNormal
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHorizontal & Vertical drillcore componentsPLC, Motor, Drills
    Power (kW)1.5kW(2.01hp)dimension(l*w*h)1400*1300*1400mm(55.12*51.18*55.12in)
    Weight (KG)300 KG(661.39lb)Max drilling diameter35mm(single head)D=13mm(multi-head)
    The maximum drilling depth60mmThe total number of drilled shaft21
    Drill joint fit-up aperture10mmMax.drilling distance1220*640mm
    Min.drilling distance135*32mmSpindle speed2840rpm
    Air Pressure0.6~0.8MpaConditionNew
    Warranty of core components1 YearShowroom LocationNone
    Applicable IndustriesConstruction works , Other,FurnitureMarketing TypeNew Product
    Motor TypeCoppei Core
