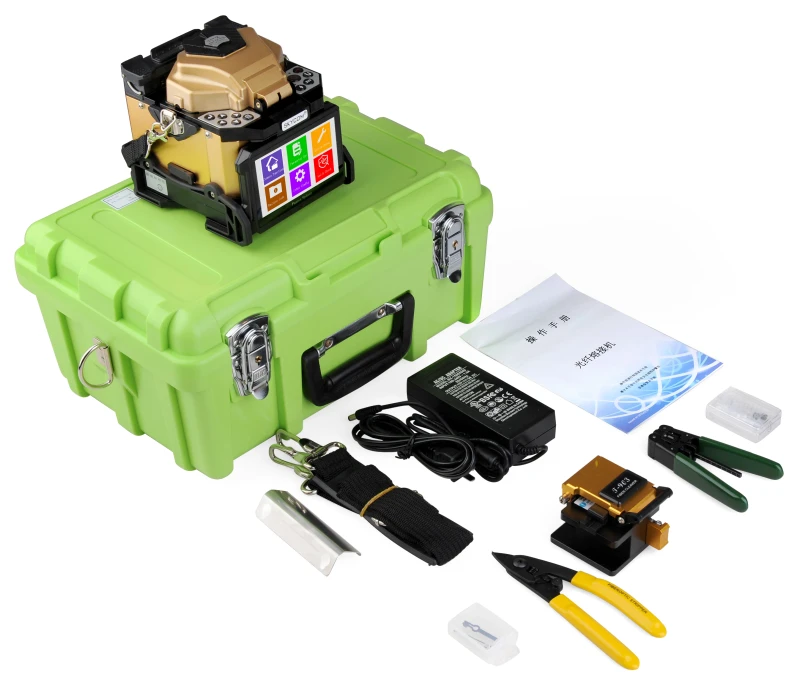

Core Alignment Splicing Machine T 319S (6 Motors)
Core Alignment Splicing Machine T 319S (6 Motors)
| Type | Fiber fusion splicer | Use | FTTH |
| Network | 4 G | Warranty Time | Two years |
| Applicable Fibers | SM, MM, NZ-DS, EDF , Pigtail, | Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Fiber image magnification | Simultaneous X and Y views with 200 times magnification | Typical splicing & heating time | 8 & 20 seconds |
| Tension Test & Return Loss | 2.0N(200gf)(Standard) & ≥60dB | Protection Sleeve Length | 20mm, 40mm, 60mm |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) | Power Supply | Inner lithium battery: 11.1V, 6AH |
| Name | Skycom core alignment splicing machine T-319S |
