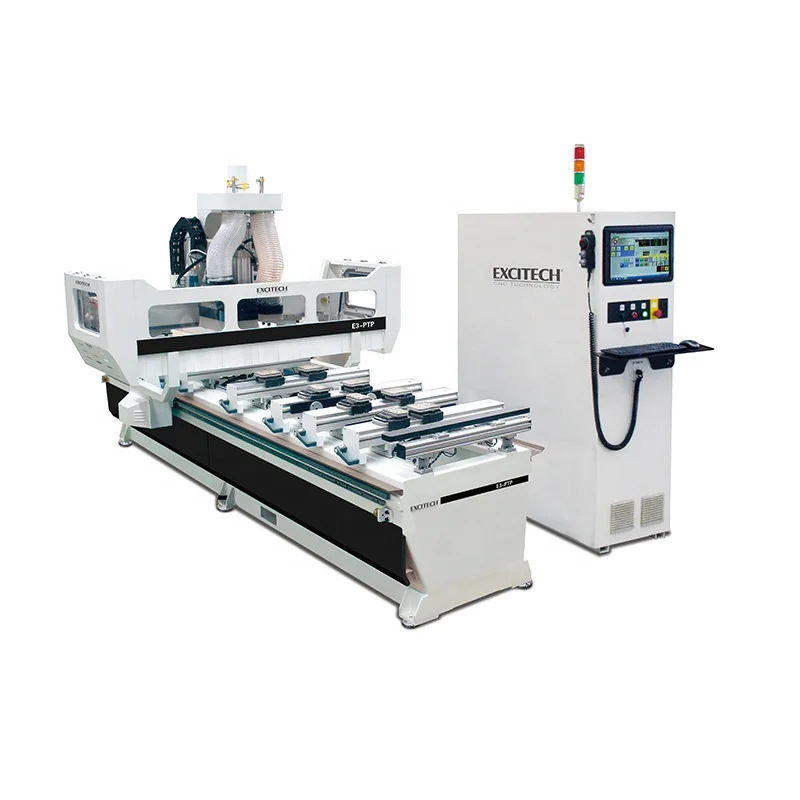

PTP Wood CNC Working Router for Desk and Door Drilling
PTP Wood CNC Working Router for Desk and Door Drilling
| Working Table Size(mm) | 900*2440 | number of axes | 3 |
| voltage | AC380/3P/50HZ | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Competitive Price |
| core components | Bearing, Motor, PLC, Gearbox | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 20 | weight (kg) | 2500 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.2 mm(0.01in) |
| travel (x axis)(mm) | 900 mm(35.43in) | travel (y axis)(mm) | 2400 mm(94.49in) |
| repeatability (x/y/z) (mm) | 0.05 mm(0in) | Spindle Motor Power (kw) | 5.5 |
| dimension(l*w*h) | 3.3*1.8*2.1M(10.83*5.91*6.89ft) | Product name | EXCITECH PTP wood cnc working router for desk and door drilling |
| Working size | 900*2440*80mm | Table size | 900*2440mm |
| Transmission | X/Y rack and pinion drive,Z ball screw drive | Table structure | Pods and rails |
| Spindle power | 5.5kw | Driving system | Yaskawa |
| Working speed | 20m/min | Control system | OSAI |
| Drilling head | 9 vertical+6 horizontal+1 sawing units |
