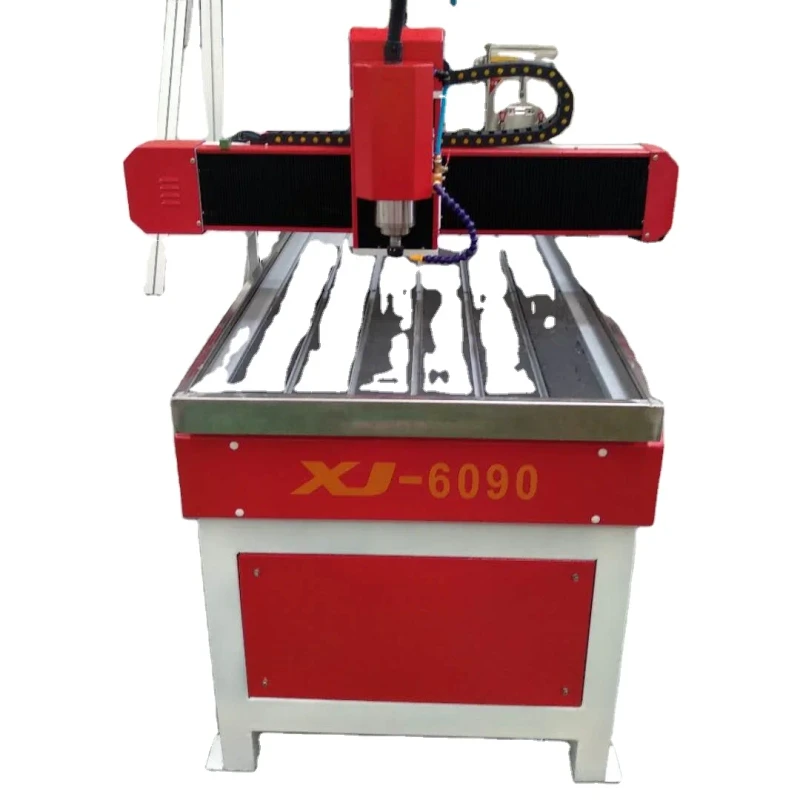

Used Second Hand 600x900mm Size 6090 2x3 Feet 3D CNC Router with Rotary 4 Axis

Used Second Hand 600x900mm Size 6090 2x3 Feet 3D CNC Router with Rotary 4 Axis
  • Used Second Hand 600x900mm Size 6090 2x3 Feet 3D CNC Router with Rotary 4 Axis

    • Used Second Hand 600x900mm Size 6090 2x3 Feet 3D CNC Router with Rotary 4 Axis

    Request a Quote
    Working Table Size(mm)600×900number of axes3
    voltageAC220Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsEasy To Operate
    core componentsMotor, Pump, Gear, Enginecnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)1.5weight (kg)400
    range of spindle speed(r.p.m)12000 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)600travel (y axis)(mm)900
    repeatability (x/y/z) (mm)0.02Spindle Motor Power (kw)1.5KW(2.01hp)
    dimension(l*w*h)1420*1030*1160mm(55.91*40.55*45.67in)Product nameHigh quality 6090 cnc router machine
    Control systemNc-studio/Mach3/DSP Control SystemSpindle1.5kw Water Cooling Spindle
    TransmissionXY Axis Rack gear,Z axis ball screwInverterFuling
    MotorStepper Motor/servo motorTable SurfaceT-slot Aluminum +PVC/vacuum table
    Driving systemstepper DriveTable structurecast iron
    working area600x900mm
