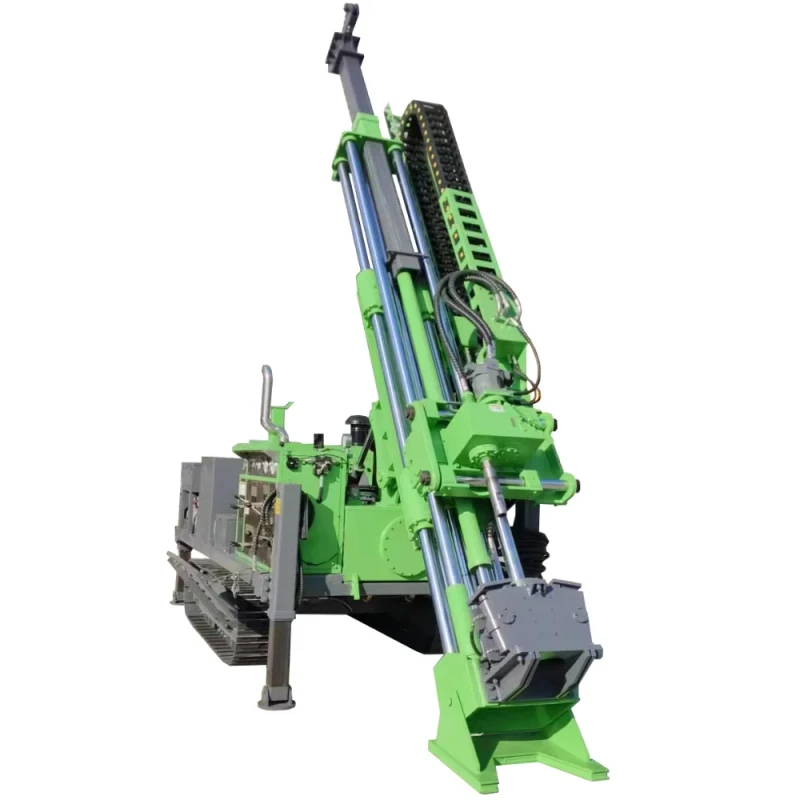

High Power Diesel Crawler Mine Deep Rock Drilling Rig 800m Depth 60 150mm Mine Geological Exploration Core Drilling Rig
High Power Diesel Crawler Mine Deep Rock Drilling Rig 800m Depth 60 150mm Mine Geological Exploration Core Drilling Rig
| Usage | Core drilling | Type | Full Hydraulic Drilling Rig |
| Drilling Depth | 1500M(4921.26ft) | Drilling Diameter | 60-110 mm(2.36-4.33in) |
| Power Type | Diesel | Core Components | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Engine |
| Machinery Test Report | Provided | Video outgoing-inspection | Provided |
| Key Selling Points | Automatic | Weight | 3600 KG(7936.64lb) |
| Dimension(L*W*H) | 4300x1800x2250mm(169.29x70.87x88.58in) | Mobility | Track Movement |
| Drill Diameter | PO/HTW/NTW/BTW/PQ/HQ/NQ/BQ | Hydraulic System Max Pressure | 20 MPa |
| Motor Speed Max | 1300 rpm | Power Head Max Torque | 1500 N.m |
| Max Rotary Speed | 0-1300 rpm | Drll Rod Length | 1.5m |
| Drilling Angle | 0-90° | Hoisting Capacity | 12T |
| Auxiliary Hoist Lifting Capacity | 10 kN | Auxiliary Hoist Wire Rope Diameter | 6 mm |
