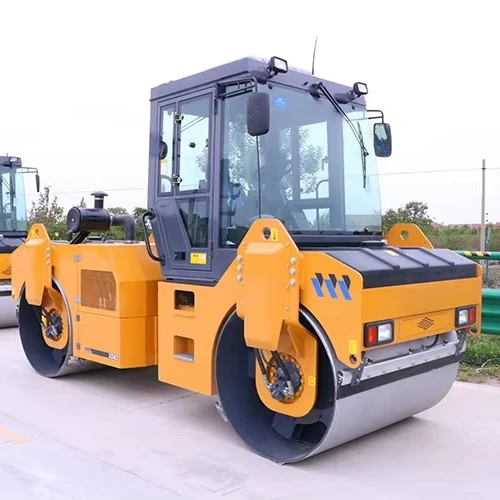

Road Machinery XD83 8.5ton Vibratory Roller for Residential Community and Industrial Park Road Construction
Road Machinery XD83 8.5ton Vibratory Roller for Residential Community and Industrial Park Road Construction
| Type | Vibratory Roller | Exciting Force | 75kN |
| Power(W) | 74.9kw(100.44hp) | Make | top brand |
| Engine Brand | top brand | Grade Ability | 35% |
| Travel Speed | 0~12Km/h(0~7.46mph) | Hydraulic Pump Brand | top brand |
| Hydraulic Valve Brand | top brand | UNIQUE SELLING POINT | Fully hydraulic system |
| Machinery Test Report | Provided | Video outgoing-inspection | Provided |
| Drum | Double Drum Roller | Core Components | Pressure Vessel, Motor, Bearing, Gear, PLC, Pump, Engine, Gearbox |
| Color | Yellow | Dimension(L*W*H) | 4900*1680*3087mm(192.91*66.14*121.54in) |
| Distributed mass of front drum | 4250kg | Nominal amplitude | 0.35/0.6mm |
| Vibrational frequency | 45/55Hz | Vibrating wheel dimension | 1150*1680mm |
| Minimum turning radius (intern)/(extern) | 4100/5780mm | Rated power | 74.9kw |
| Rated speed | 2300r/min | Static linear load | 248N/cm |
| Theoretical gradeability | 35% | Swing angle | 10° |
