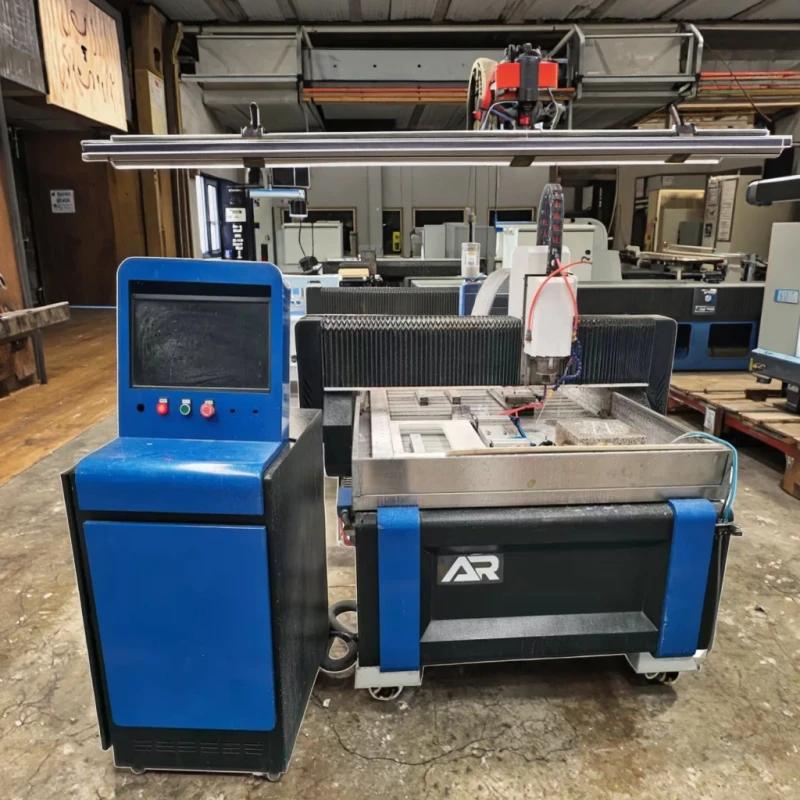

3 Axis Marble Stone 1325 CNC Router Stone Machine Carving Marble Stone Granite CNC Router Machine

3 Axis Marble Stone 1325 CNC Router Stone Machine Carving Marble Stone Granite CNC Router Machine
  • 3 Axis Marble Stone 1325 CNC Router Stone Machine Carving Marble Stone Granite CNC Router Machine

    • 3 Axis Marble Stone 1325 CNC Router Stone Machine Carving Marble Stone Granite CNC Router Machine

    Request a Quote
    Working Table Size(mm)1300×2500number of axes3
    voltageAC220V/380Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsMultifunctional
    core componentsMotor, PLCcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)10weight (kg)1800
    range of spindle speed(r.p.m)0 - 24000 rpmpositioning accuracy (mm)0.03
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.05Spindle Motor Power (kw)5.5/7.5
    dimension(l*w*h)3540x2210x2100mm(139.37x87.01x82.68in)Product nameStone / Marble Engraving CNC Router
    Spindle5.5kw / 7.5kw water cooled spindle special for stoneControl systemNc-studio/Mach3/DSP Control System
    TransmissionXY-axis:rack Z-axis:ball ScrewWorking tableT-slot table with water tank
    Guide railTaiwan Hiwin Square Guide RailInverterBEST Inverter
    Motor and driverStepper Motor Leadshine Driver (Servo is optional)Working area1300x2500x500mm/1500x3000x500mm/Customized
    ApplicationStone / Marble / Granite Carving Engraving Cutting etc
