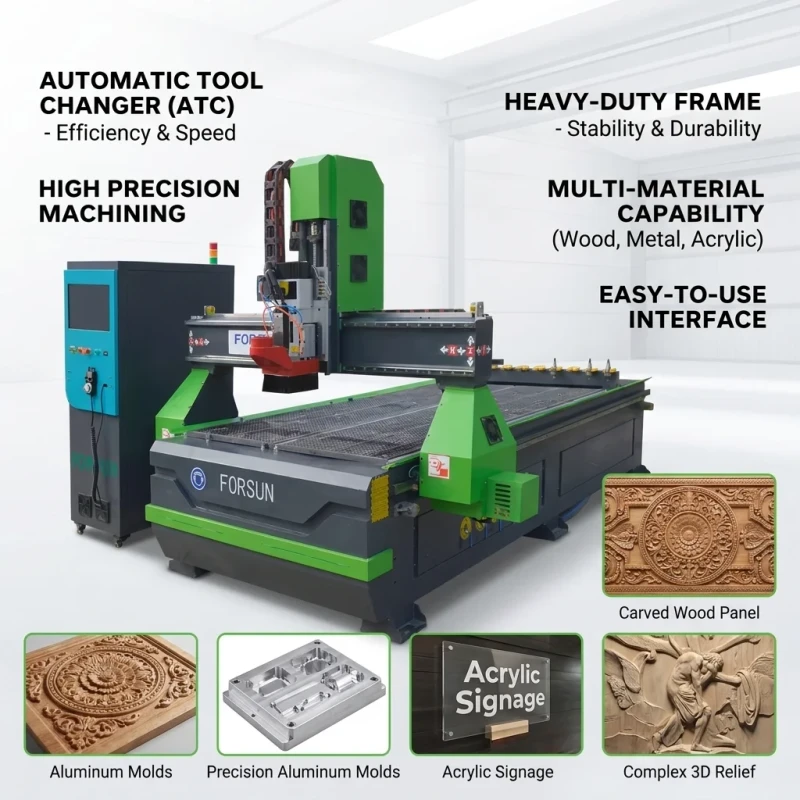

Whole House Customization LUDO Machining Center Straight Row Tool Changer CNC Router ATC Furniture Cutter Machinery
Whole House Customization LUDO Machining Center Straight Row Tool Changer CNC Router ATC Furniture Cutter Machinery
| number of axes | 1 | voltage | AC380V/50HZ |
| machine type | CNC Router | No. of Spindles | Single |
| key selling points | Easy To Operate | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other |
| cnc or not | CNC | video outgoing-inspection | Provided |
| machinery test report | Provided | weight (kg) | 1800 |
| range of spindle speed(r.p.m) | 1 - 24000 rpm | positioning accuracy (mm) | 0.03 |
| travel (x axis)(mm) | 1300 | travel (y axis)(mm) | 2500 |
| repeatability (x/y/z) (mm) | 0.03 | Spindle Motor Power (kw) | 9 |
| dimension(l*w*h) | 3500*2200*1900MM(137.80*86.61*74.80in) | Product name | cnc machine |
| Application | Wood,MDF,foams,plastic,PVC,aluminum etc | Controller | SIEMENS Controller |
| Spindle | Italy 9KW air cooling ATC spindle | Motors | SIEMENS servo motor |
| Drives | Japan YASKAWA drivers | Max rapid speed | 80000mm/min |
| Max working speed | 45000mm/min | Spindle speed | 0-24000r/min |
| Guide rail | Taiwan HIWIN Square Rail |
