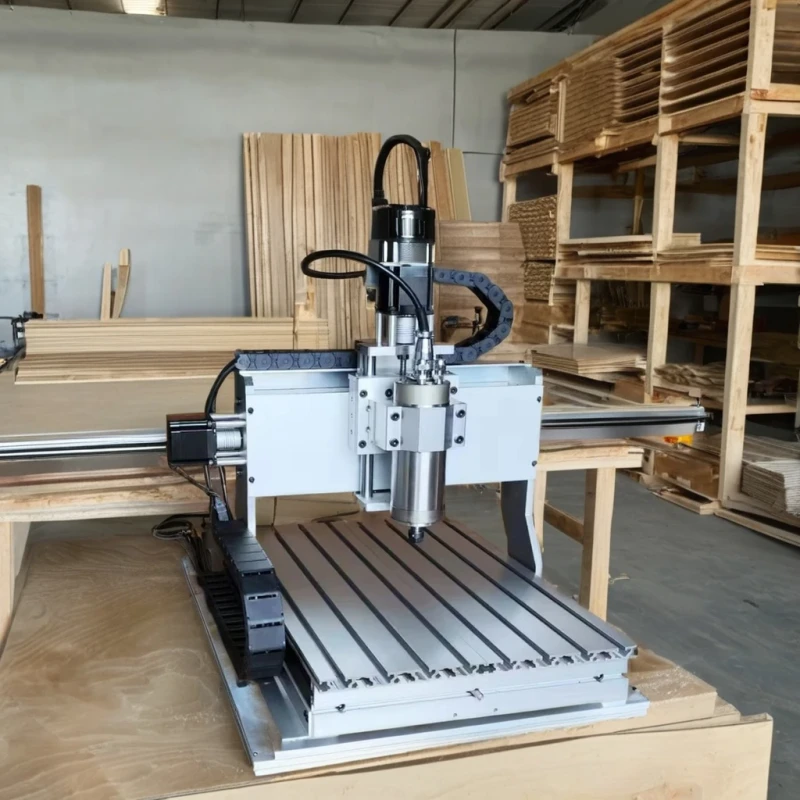

Small Size CNC Router Machine Milling Engraving Cutting Copper Aluminum Steel Acrylic Plastic Wood PCB Multimaterial Cnc Router
Small Size CNC Router Machine Milling Engraving Cutting Copper Aluminum Steel Acrylic Plastic Wood PCB Multimaterial Cnc Router
| Working Table Size(mm) | 1300×2500 | number of axes | 3 |
| voltage | 220 | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| core components | Bearing, Motor, Pump, Gear, Engine, Gearbox, spindle, inverter, driver | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 3 | weight (kg) | 100 |
| range of spindle speed(r.p.m) | 0 - 24000 rpm | positioning accuracy (mm) | 0.02 mm(0in) |
| travel (x axis)(mm) | 300 mm(11.81in) | travel (y axis)(mm) | 400 mm(15.75in) |
| repeatability (x/y/z) (mm) | 0.01 mm(0in) | Spindle Motor Power (kw) | 400w(0.54hp) |
| dimension(l*w*h) | 650*510*400mm(25.59*20.08*15.75in) | Product name | JNM3040 CNC Router |
| Keywords | CNC Milling Engraver | Spindle | 400w Water Cooling Spindle |
| Control system | DSP Control System | Transmission | XY-axis:rack |
| Table | Aluminum T-slot + PVC | Guide rail | Taiwan Square Guide Rail |
| Drive motor | Stepper Motor | Color | White |
| Working accuracy | 0.02-0.05mm |
