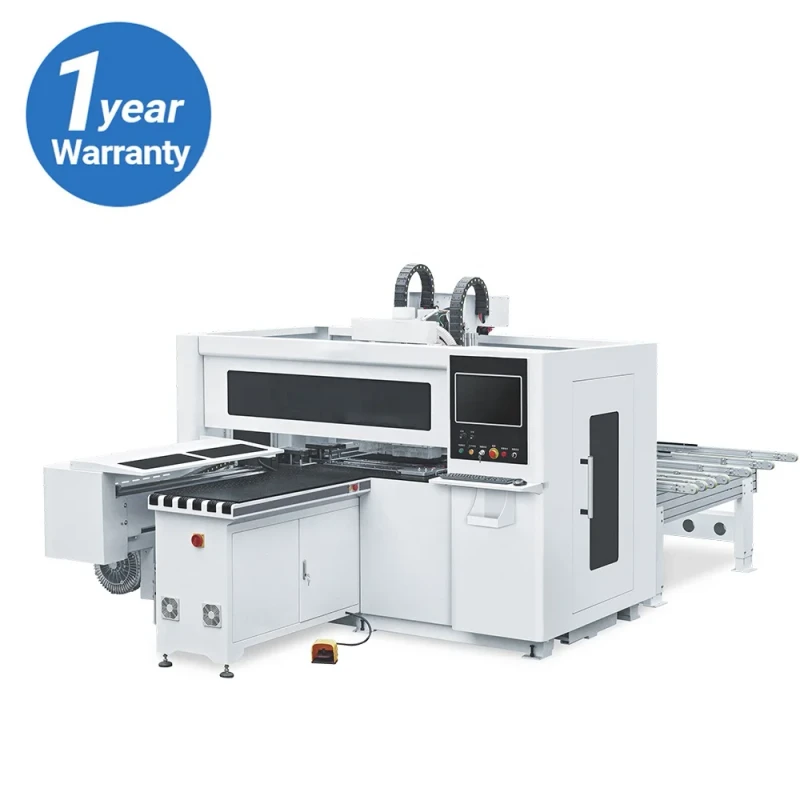

SKI 612 Six Sides Drilling Machine CNC Horizontal Wood Multi Directional Drilling Machine

SKI 612 Six Sides Drilling Machine CNC Horizontal Wood Multi Directional Drilling Machine
  • SKI 612 Six Sides Drilling Machine CNC Horizontal Wood Multi Directional Drilling Machine

    • SKI 612 Six Sides Drilling Machine CNC Horizontal Wood Multi Directional Drilling Machine

    Request a Quote
    voltage220v, 380v or Customizedcnc or notCNC
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsEasy To Operatecore componentsPLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
    Power (kW)22.8dimension(l*w*h)4600*2650*2100mm(181.10*104.33*82.68in)
    Weight (KG)4300Maximum width of drill up plate1220mm
    Maximum width of drill down plate1000mmMinimum board width1250mm
    Panel minimum width40mmMaximum length of plate3500mm
    Panel minimum thickness10mmVacuum flow rate9600m³/h
    Total power21kwWorking pressure0.65-0.8mpa
    Machine net weight2200kg
