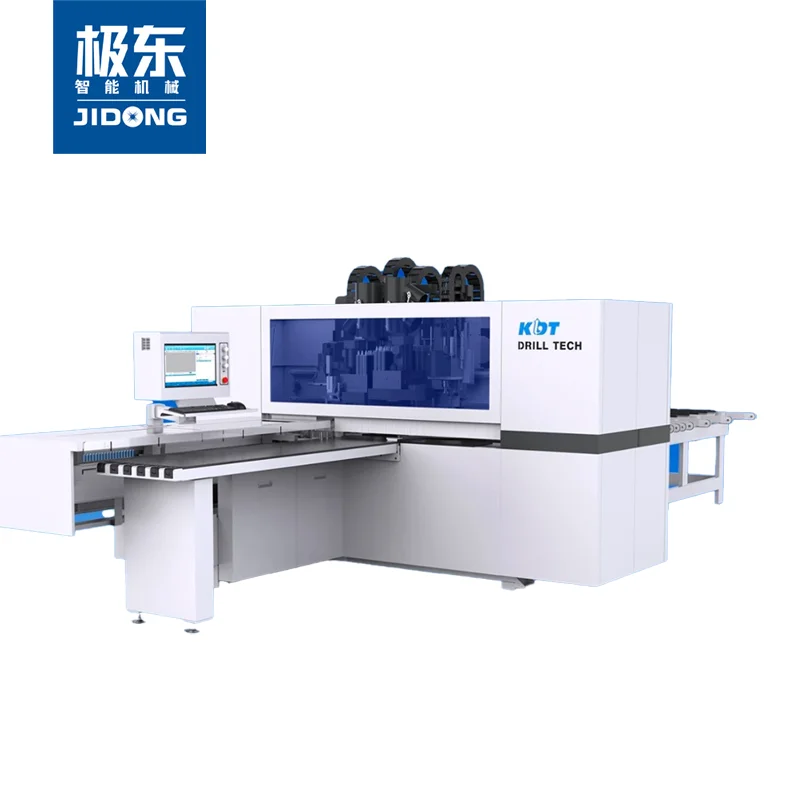

Six sided CNC Drilling Center KD 612CSD

Six sided CNC Drilling Center KD 612CSD
  • Six sided CNC Drilling Center KD 612CSD

    • Six sided CNC Drilling Center KD 612CSD

    Request a Quote
    max. drilling dia. (mm)60typeColumn Drilling Machine
    voltage220 Vcnc or notCNC
    machinery test reportProvidedcore componentsBearing
    video outgoing-inspectionProvidedkey selling pointsMultifunctional
    range of spindle speed(r.p.m)18000 - 24000power (kw)37.22
    weight (kg)3500drilling speedMAXIMUM SPEED ON X-AXIS:140m/min
    dimension(l*w*h)6040L*3450W*2190Hmaximum speed ofX Y & Z axis140,90,50m/min
    Maximum speed of B-axis75m/minMaximum speed of C-axis30m/min
    Number of tools for drillingupper 26 vertical+16 horizontal+lower12Spindle powerUpper 5.5kW;Lower3.5kW
    side milling head motor power6kWWorkpiece length70-3000mm
    . Workpiece width50-1220mm; 30~50mm(L≤1000mm)Workpiece thickness9-60mm
    Working pressure0.6MPa
