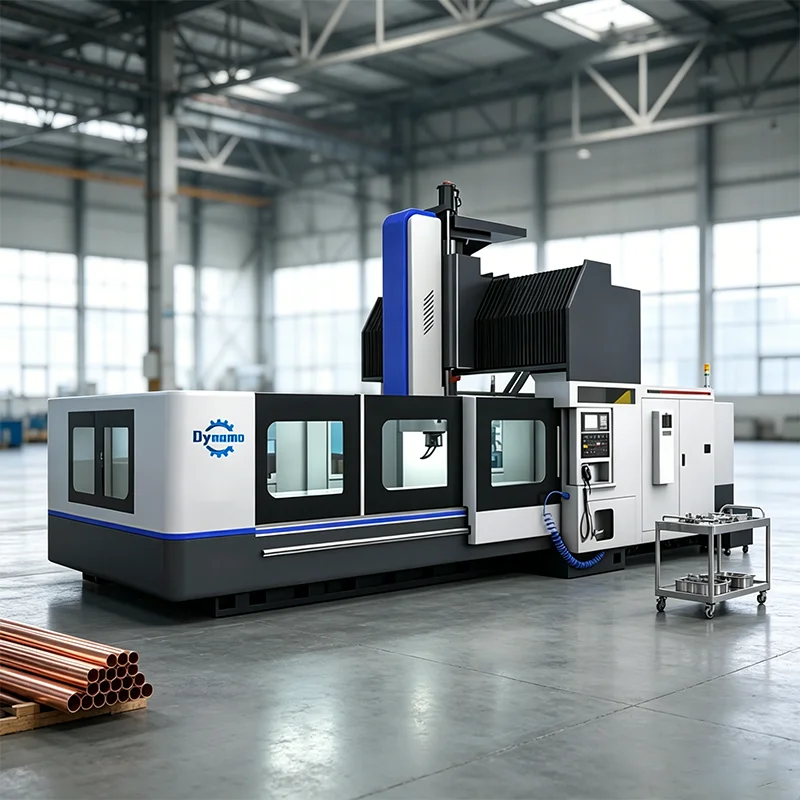

Precision Enhanced Model Heavy Duty Automatic High Torque GMC3013 Gantry Style CNC Wide Spindle Speed Range Versatile Cutting
Precision Enhanced Model Heavy Duty Automatic High Torque GMC3013 Gantry Style CNC Wide Spindle Speed Range Versatile Cutting
| type | Gantry Machine | max. length of workpiece (mm) | 3000 |
| positioning accuracy (mm) | ±0.005 | repeatability (x/y/z) (mm) | ±0.005 |
| number of axes | 5 | cnc control system | FANUC |
| no. of spindles | 3, 5 | tool post stations | 12, 8, 6, 4 |
| machining capacity | Heavy Duty | voltage | 380 V, 220 V |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, High Productivity, High Rigidity | max. weight of workpiece(kg) | 4000 |
| travel (x axis)(mm) | 3000 | travel (z axis)(mm) | 800 |
| width of bed (mm) | 600 | dimension(l*w*h) | 6500x5100x4300 |
| weight | 21000 | range of spindle speed | 1 - 6000 |
| cutting torque | 154 | Product name | Heavy Duty Automatic High Torque GMC3013 Gantry Style CNC |
| Tool Magazine Capacity | 24 | Tool Magazine | OKADA ATC 24 |
| Guideways | Taiwan Hiwin Linear Guideways | Certification | ISO CE TUV |
| Spindle Taper | BT40-120 / BT40-150 | ATC Fom | Disc type/chain type |
| Application | Metal Machining | Tailstock Quill Taper | MT6 |
| After-sales Service Provided | Video Technical Support |
