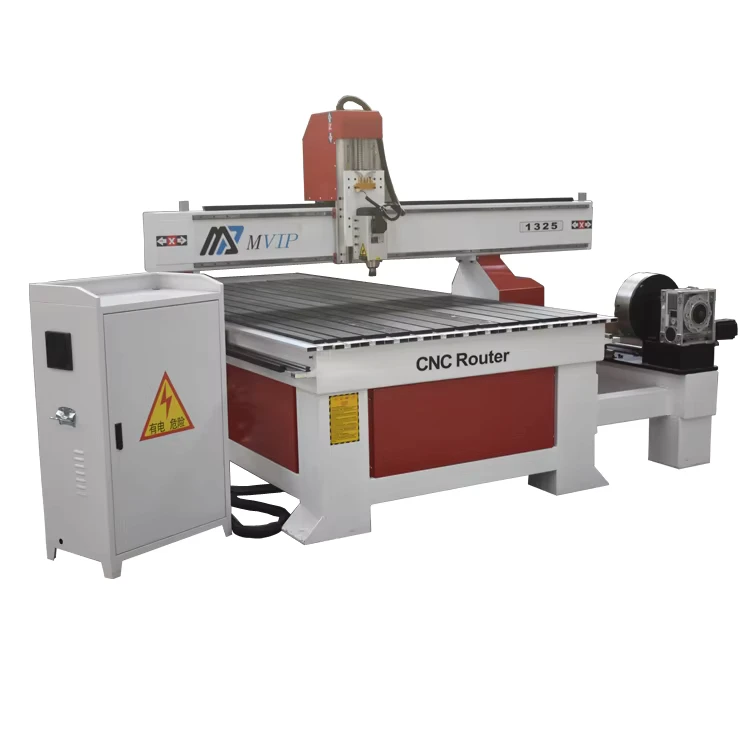

New Design 4 Axis Cnc Router With Rotary Device 3d Woodworking Engraving Machine

New Design 4 Axis Cnc Router With Rotary Device 3d Woodworking Engraving Machine
  • New Design 4 Axis Cnc Router With Rotary Device 3d Woodworking Engraving Machine

    • New Design 4 Axis Cnc Router With Rotary Device 3d Woodworking Engraving Machine

    Request a Quote
    Working Table Size(mm)1300×2500number of axes4
    voltage220 V/380 Vmachine typeCNC Router
    No. of SpindlesSinglekey selling pointsCompetitive Price
    core componentsBearing, Motor, Gear, PLC, Other, Engine, Gearboxcnc or notCNC
    video outgoing-inspectionProvidedmachinery test reportProvided
    Power (kW)10weight (kg)1500
    range of spindle speed(r.p.m)6000 - 24000 rpmpositioning accuracy (mm)0.02
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.03Spindle Motor Power (kw)Customer needing
    dimension(l*w*h)1800*3000*1500 mm(70.87*118.11*59.06in)Application3D processing with rotary device
    TableAluminium T-Slot + PVCFrameSteel Tube welded Structure
    Control systemDSP HandleCooling systemWater Cooling
    X Y AxisTransmissionHelical rack and pinionZ TransmissionRolling ball screw
    MotorStepper motorsDriverMatched with the motors
    InverterBest or Fuling inverter optional
