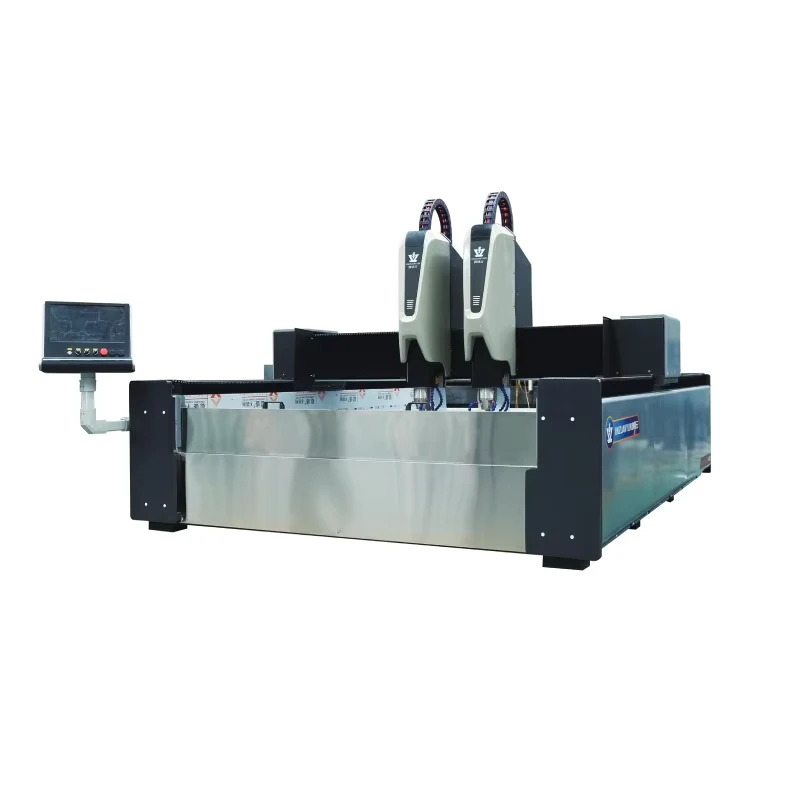

JZ3015T 2D 3 Axis Double Head Stone CNC Engraving Machine for Marble

JZ3015T 2D 3 Axis Double Head Stone CNC Engraving Machine for Marble
  • JZ3015T 2D 3 Axis Double Head Stone CNC Engraving Machine for Marble

    • JZ3015T 2D 3 Axis Double Head Stone CNC Engraving Machine for Marble

    Request a Quote
    TypeStone Engraving MachineUseCarving
    Voltage380 VCutting thickness (max)120 mm(4.72in)
    Max Cutting Length2500Power(W)7.5kw(10.06hp)
    Core ComponentsMotorKey Selling PointsEasy To Operate
    Machinery Test ReportProvidedVideo outgoing-inspectionProvided
    ColorGreyWeight3000 kg(6613.87lb)
    Dimension(L*W*H)4300*2300*2300Product nameIntelligent engraving machine
    Workpiece size2500*1400mm for 1 piece/1400*1400mm for 2 piecesFeed height<400mm
    Air speed30min/minprocessing speed20min/min
    spindle power7.5kwspindle speed0~24000rpm/min
    SystemNC Studio 60ADrive1.5KW Digital Full AC Servo
    Motor1.5KW Digital Full AC Servo
