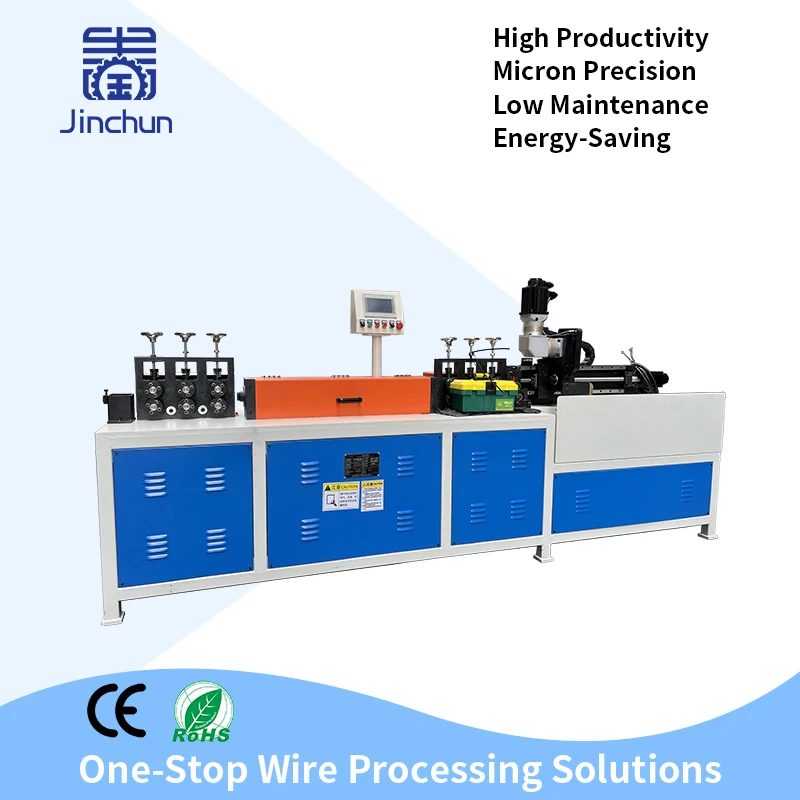

High Speed Automatic Metal Motor Cut Wire Straightener 5-10mm Production Line Wire Straightening Machine
High Speed Automatic Metal Motor Cut Wire Straightener 5-10mm Production Line Wire Straightening Machine
| type | Straightener & Cutter | use | Wire |
| Feeding Speed | over 60m/min | voltage | 380-440v |
| core components | PLC, Motor, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Easy To Operate, Automatic, High-Accuracy |
| Product Applications | Straightener & Cutter | dimension(l*w*h) | 3070*900*1450(mm) |
| power(w) | 12.2KW(16.36hp) | weight (kg) | 1300 |
| Product Name | Straightening Machine with Tracking Shear | Number of Axes | 3 Axis |
| Suitable Wire Material | Low Carbon Iron Wire | Suitable For Wire Diameter | 5-10mm |
| Length Deviation in Cutting | ±0.5mm | Cutting Length Range | Above 50mm |
| Wire Feeding Motor Power | 3.7KW | Straightening Motor Power | 7.5KW |
| Tracking-cut Servo Motor Power | 1.0KW | Number of Straightening Blocks | 6 pcs |
