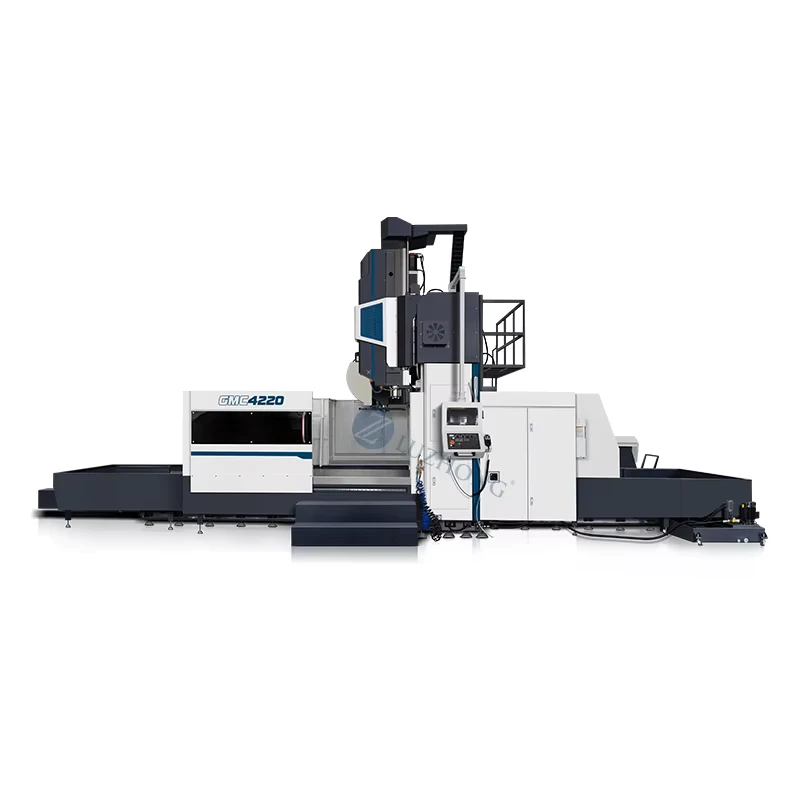

High rigidity Gantry Structure Large Workpiece Machining Capability CNC Gantry Milling Machine GMC4220

High rigidity Gantry Structure Large Workpiece Machining Capability CNC Gantry Milling Machine GMC4220
  • High rigidity Gantry Structure Large Workpiece Machining Capability CNC Gantry Milling Machine GMC4220

    • High rigidity Gantry Structure Large Workpiece Machining Capability CNC Gantry Milling Machine GMC4220

    Request a Quote
    typeGantrytable travel (x) (mm)4200
    table travel (y) (mm)2000table travel (z) (mm)1000
    repeatability (x/y/z) (mm)0.005positioning accuracy±0.01
    spindle taperBT40, BT50no. of spindlesSingle
    tool magazine capacity32, 24, 20cnc control systemGSK
    machining capacityHeavy Dutyvoltagecustomized
    table size1800*4000machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)0.5
    key selling pointsMultifunctionalweight (t)32.5
    max. table load(kg)9000dimension(l*w*h)13000*4910*4800 mm(511.81*193.31*188.98in)
    range of spindle speed1 - 6000 r.p.mrapid feed speed1 - 12000
    Gantry width2000mmGantry passing height1300mm
    Distance between spindle nose and table180~1180(Opt. Highten 300mm)T slot(number-width*pitch)9-22*190
    Rapid traverse speed12 m/minCutting feed speed8 m/min
    Tool magazineArm24Main motor power15-18.5kw
