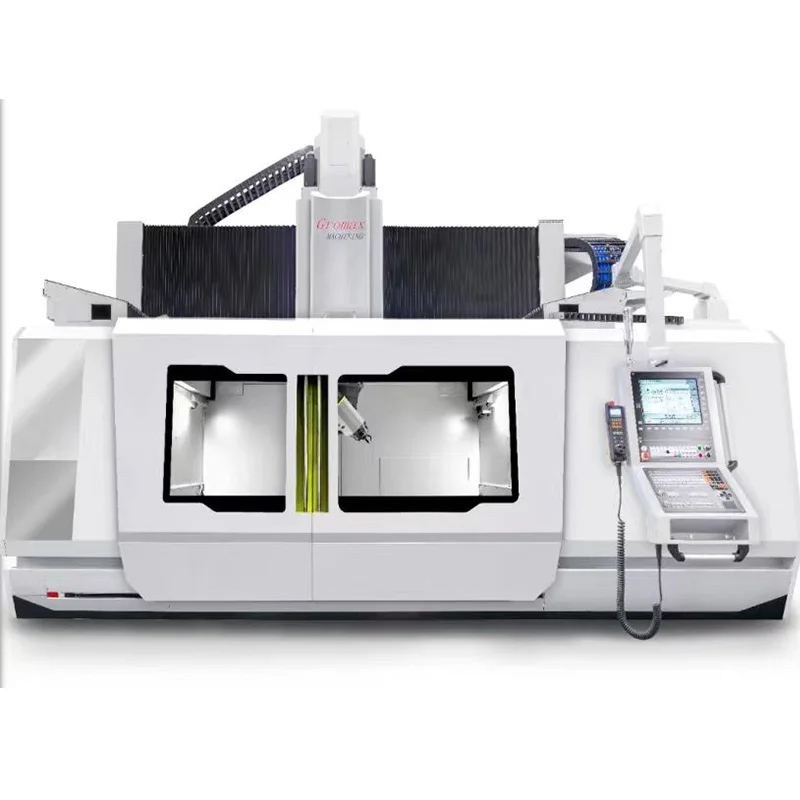

High accuracy 3 Axis CNC Machine Center Fixed Beam Center Gantry CNC Machining Center
High accuracy 3 Axis CNC Machine Center Fixed Beam Center Gantry CNC Machining Center
| type | Gantry | number of axes | 2, 3, 4, 5 |
| table travel (x) (mm) | 3000 | table travel (y) (mm) | 2200 |
| table travel (z) (mm) | 1100 | repeatability (x/y/z) (mm) | ±0.003 |
| positioning accuracy | ±0.005 | spindle taper | BT50 |
| no. of spindles | Single | tool magazine capacity | 24 |
| cnc control system | FANUC, Mitsubishi, Siemens | table size | 3000*1800 |
| machinery test report | Provided | video outgoing-inspection | Provided |
| min. time of tool change(s) | 5 | key selling points | Multifunctional |
| weight (t) | 31 T(34.17short tons ) | max. table load(kg) | 9000 kg(19841.60lb) |
| dimension(l*w*h) | 8500*5600*5700 | range of spindle speed | 6000 - 16000 |
| spindle motor power | 22 | Product name | Double Column Cnc Machining Center |
| Control system | SIEMENS GSK KND FANUC MITSUBISHI(optional) | Application | Metal Drilling Tapping Milling |
| Spindle | BT50 Belt type | Function | Complex Metalworking Processing |
| Precision | High Precision High Accuracy | Tool magazine | Arm 24 |
| General customised content | Axes | After-sales Service Provided | Engineers |
| Material | Casting Iron CNC Machining Center |
