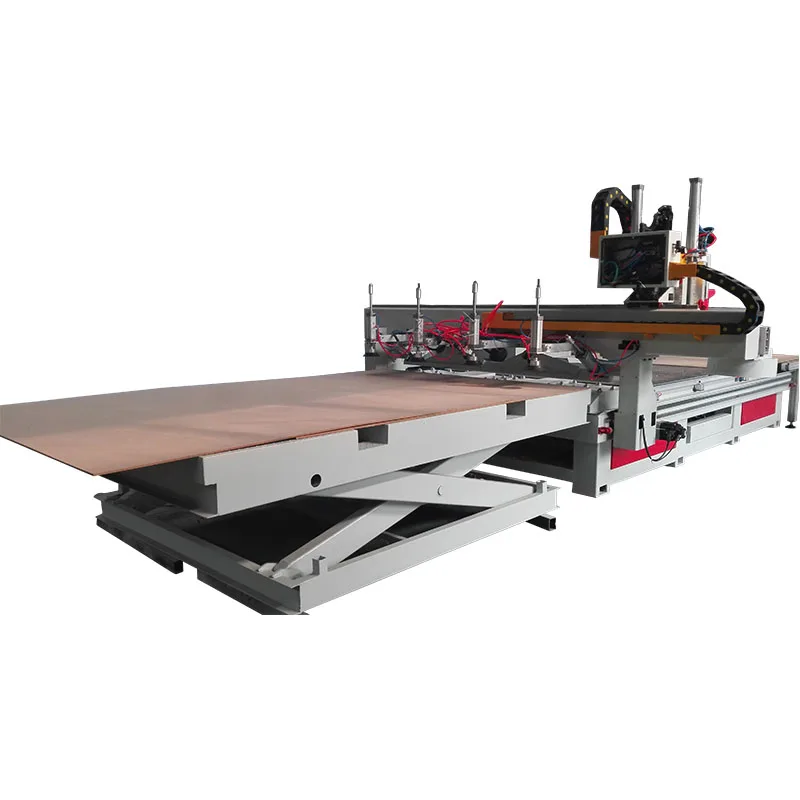

CNC in Jinan 1325 CNC Nesting Furniture Router Machines for Wood Cabinet Wardrobe Cutting
CNC in Jinan 1325 CNC Nesting Furniture Router Machines for Wood Cabinet Wardrobe Cutting
| Working Table Size(mm) | 12000*2400 | number of axes | 3 |
| voltage | AC220V-/380V | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Easy To Operate |
| cnc or not | CNC | weight (kg) | 3000 |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 12000 mm(472.44in) |
| travel (y axis)(mm) | 2400 mm(94.49in) | repeatability (x/y/z) (mm) | 0.01 mm(0in) |
| dimension(l*w*h) | 3900*2250*2500mm(153.54*88.58*98.43in) | After-sales Service Provided | Online support |
| Structure | Heavy Duty Seamless Steel Structure | X,Y,Z Structure | X,Y Rack and Pinion ;Z Ball Screw |
| Spindle Power | Italy HSD 9kw ATC Spindle | boring head | Italy FAM Nine Vertical Driller |
| Motor Type | Japan YASKAWA 850W Servo | Operation System | Taiwan Syntec Control System with Hand Wheel |
| Planetary Reducer | France Motorvario Helical Planetary Reducer | Inverter | China 11kw Inverter |
| Working Table | Vaccum Table |
