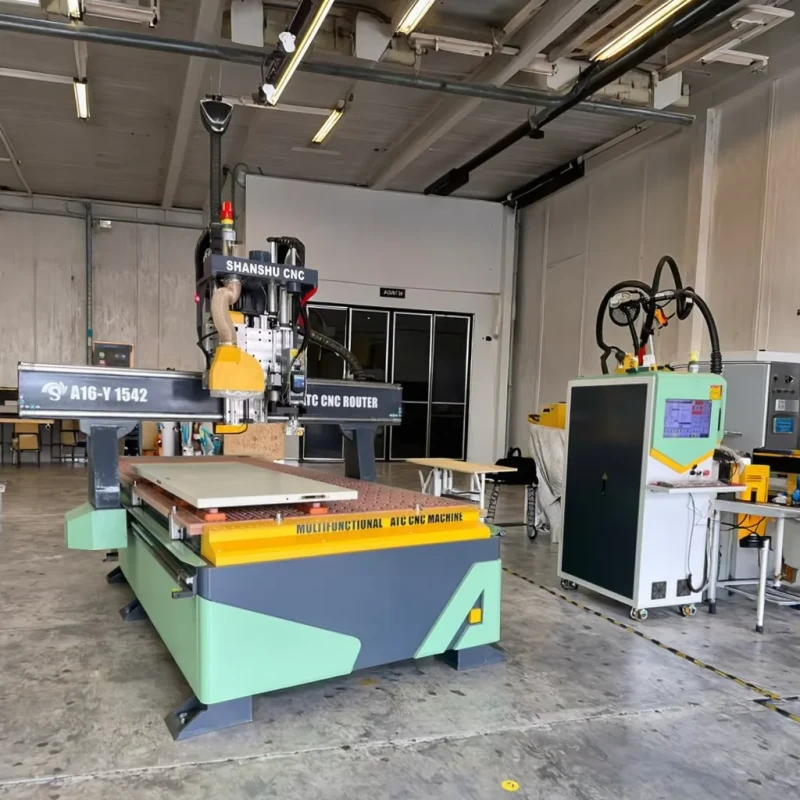

ATC CNC Router Non standard Custom Vertical Saw 4 Side Milling Drilling Grooving Machine for Cabinet Door Panel Furniture
ATC CNC Router Non standard Custom Vertical Saw 4 Side Milling Drilling Grooving Machine for Cabinet Door Panel Furniture
| number of axes | 3 | voltage | 380V/220V |
| machine type | CNC Router | No. of Spindles | ATC |
| key selling points | Good quality products | Accessory Type | Dust collection |
| core components | Motor, Pump, PLC, Other | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2700 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.01 | travel (x axis)(mm) | 1500 |
| travel (y axis)(mm) | 4200 | repeatability (x/y/z) (mm) | 0.01 |
| Spindle Motor Power (kw) | 12 | dimension(l*w*h) | 5600*2700*2300mm(220.47*106.30*90.55in) |
| Product name | CNC Wood Working Machine | Application | Wood Acrylic PVC Engraving Cutting |
| Keywords | ATC Woodworking Cnc Router | After-sales Service Provided | Online Support |
| Control system | Taiwan LNC Control System | Function | Cutting Engraving Non-metal Materials |
| Working area | 1500*4200mm | Spindle power | 12kw ATC Air Cooling |
| Motor | Servo Motor |
