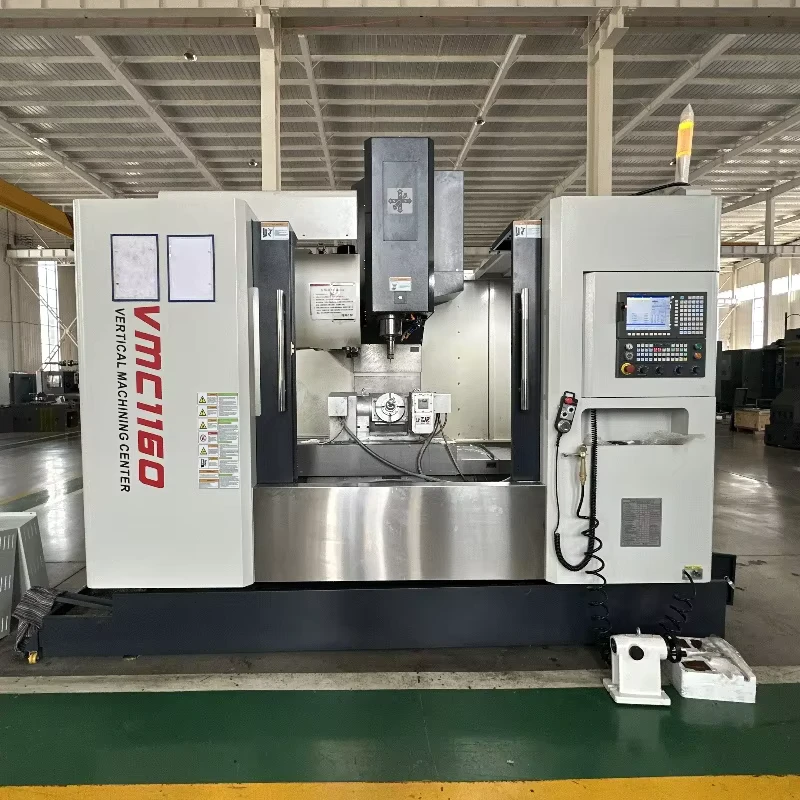

5 Axis Vertical CNC Machining Center BT40 Spindle Single Automatic Tool Change Tilting Rotary Table for Complex Parts
5 Axis Vertical CNC Machining Center BT40 Spindle Single Automatic Tool Change Tilting Rotary Table for Complex Parts
| type | VERTICAL | table travel (x) (mm) | 1100 |
| table travel (y) (mm) | 600 | table travel (z) (mm) | 600 |
| repeatability (x/y/z) (mm) | ±0.005 | positioning accuracy | ±0.005 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | GSK |
| machining capacity | Heavy Duty | voltage | 380V |
| table size | 1200x600 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 4 |
| weight (t) | 5.8 | max. table load(kg) | 1000 |
| dimension(l*w*h) | 3100X2490X2380 | range of spindle speed | 8000 - 12000 r.p.m |
| rapid feed speed | 0 - 10000 mm/min(0-393.70in/min) | X/Y/Z Max.Rapid traverse | 20/20/20 |
| X/Y/Z motor connection | Derectly connected | X/Y/Z Guide way type | 3 axes are linear guide |
| Max. tool length | 300mm | T slot | 5-18x100 |
