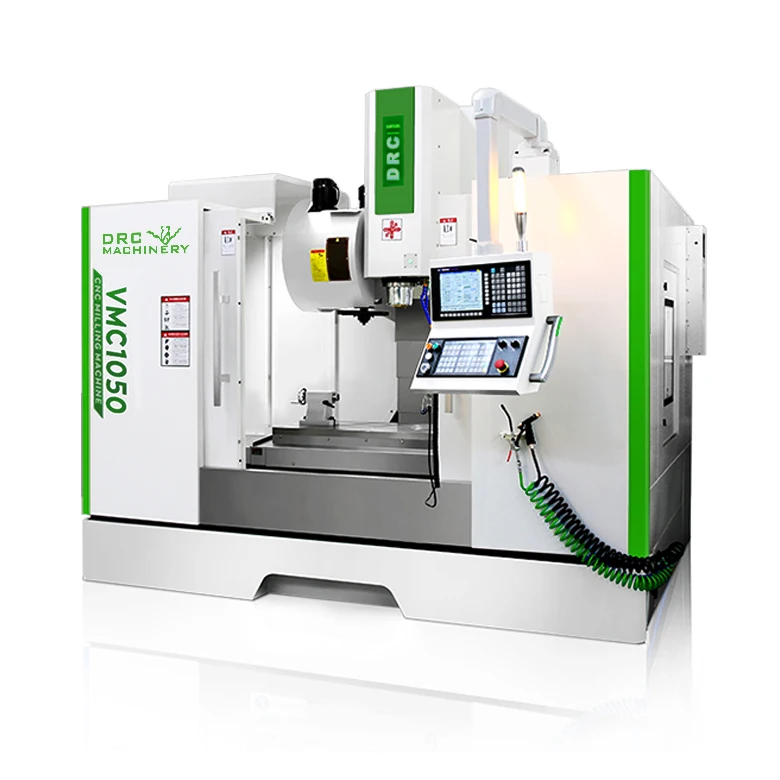

5 Axis Taiwan Vertical Machine Center VMC1050 Cnc Metal Milling Machining Center

5 Axis Taiwan Vertical Machine Center VMC1050 Cnc Metal Milling Machining Center
  • 5 Axis Taiwan Vertical Machine Center VMC1050 Cnc Metal Milling Machining Center

    • 5 Axis Taiwan Vertical Machine Center VMC1050 Cnc Metal Milling Machining Center

    Request a Quote
    typeHorizontalnumber of axes3, 4, 5
    table travel (x) (mm)1050mm(41.34in)table travel (y) (mm)500mm(19.69in)
    table travel (z) (mm)500mm(19.69in)repeatability (x/y/z) (mm)±0.005
    positioning accuracy±0.008spindle taperBT40
    no. of spindles4tool magazine capacity24
    cnc control systemGSK, FANUC, Siemensvoltage380V/50HZ
    table size1100*500mm(43.31*19.69in)machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)2
    key selling pointsAutomaticweight (t)5.6 T(6.17short tons )
    max. table load(kg)600 kg(1322.77lb)dimension(l*w*h)2800*2360*2450mm(110.24*92.91*96.46in)
    range of spindle speed50 - 10000 r.p.mspindle motor power7.5KW(10.06hp)
    Product namecnc metal milling machining centerX /Y/Zaxis travel1050/500/500mm
    Spindle face to table distance120-620mmWorktable size1100*500mm
    X/Y/Z axis rapid movement rate24/24/24m/minFeed moving velocity X, Y, Z1-12m/min
    Spindle taperBT40-150Range of spindle speed10000rpm
    After-sales Service ProvidedOnline supportHigh Quality vertical machine center5 axis taiwan vertical machine center
