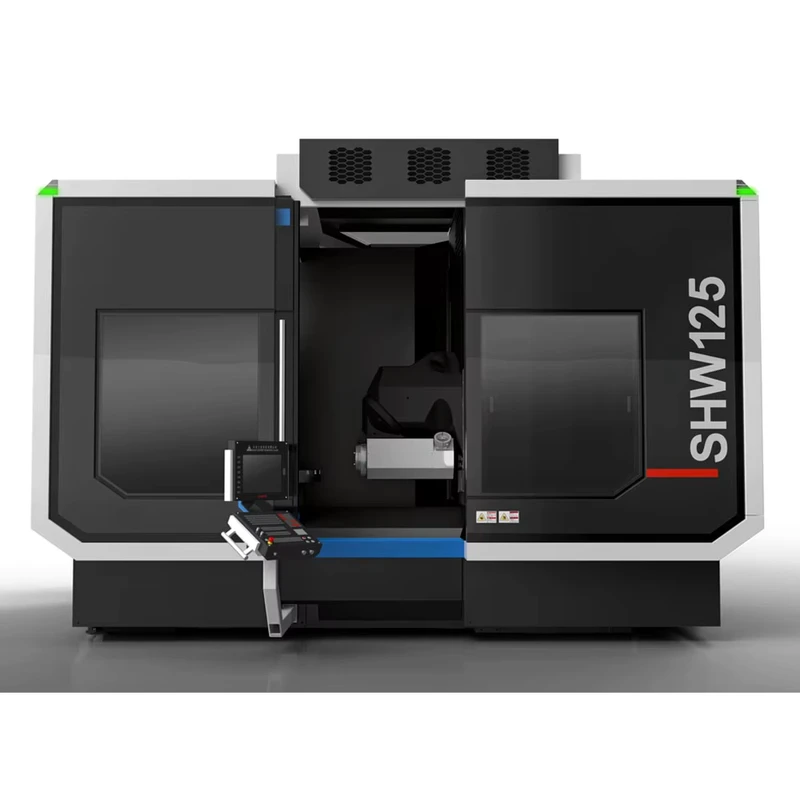

5 Axis Machining Center SHW125 CNC Machining Center High Precision CNC Milling Machine Center
5 Axis Machining Center SHW125 CNC Machining Center High Precision CNC Milling Machine Center
| type | VERTICAL | table travel (x) (mm) | 1250 |
| table travel (y) (mm) | 1250 | table travel (z) (mm) | 1000 |
| repeatability (x/y/z) (mm) | ±0.004 | positioning accuracy | ±0.006 |
| spindle taper | SK50 | no. of spindles | 1 |
| tool magazine capacity | 40 | cnc control system | Heidenhain |
| machining capacity | Heavy Duty | voltage | 380 V |
| table size | 1250*1160 | machinery test report | Provided |
| min. time of tool change(s) | 7 | key selling points | Automatic, High-Accuracy |
| weight (t) | 2 | max. table load(kg) | 2000 |
| dimension(l*w*h) | 5500*6300*3700mm(216.54*248.03*145.67in) | range of spindle speed | 0 - 10000 |
| rapid feed speed | 20 - 20000 |
