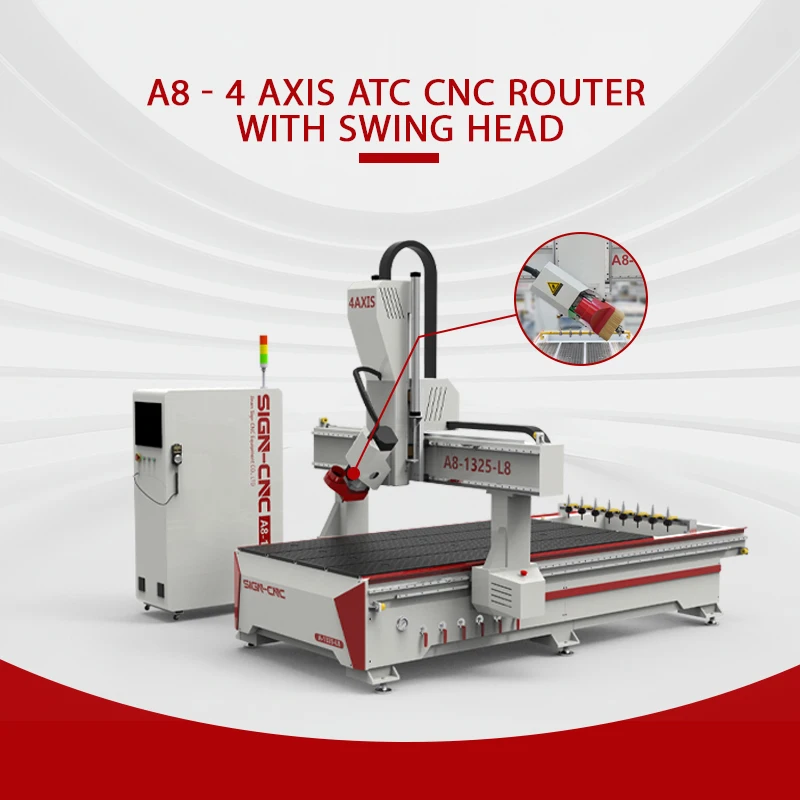

4 Axis Atc Cnc Woodworking Machine Mdf Plastic Cutting Cnc Router Engraving Furniture

4 Axis Atc Cnc Woodworking Machine Mdf Plastic Cutting Cnc Router Engraving Furniture
  • 4 Axis Atc Cnc Woodworking Machine Mdf Plastic Cutting Cnc Router Engraving Furniture

    • 4 Axis Atc Cnc Woodworking Machine Mdf Plastic Cutting Cnc Router Engraving Furniture

    Request a Quote
    number of axes4voltage380 V
    machine typeCNC RouterNo. of SpindlesSingle
    key selling pointsEasy To Operatecore componentsBearing, Motor, Pump, Gear
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)1600
    positioning accuracy (mm)0.01travel (x axis)(mm)1300
    travel (y axis)(mm)2500repeatability (x/y/z) (mm)0.01
    Spindle Motor Power (kw)9dimension(l*w*h)3500*2100*2200
    Z-axis Height400mmTable SurfaceVacuum table with T-slot and 7.5KW vacuum pump
    X, Y StructureHelical rack and high precision 25mm square guide railZ StructureHigh precision 25mm square guide rail and ball screw
    Spindle Power9.0KW ATC air-cooled ISO30-ER32 spindleSpindle Speed0-24000RPM
    A-axis SwingSpindle swing 180°( left and right ±90°)InverterDelta high frequency 11KW inverter
    Control SystemSyntec 60WE bus control system (4-axisWorking VoltageAC380V/50/60Hz
