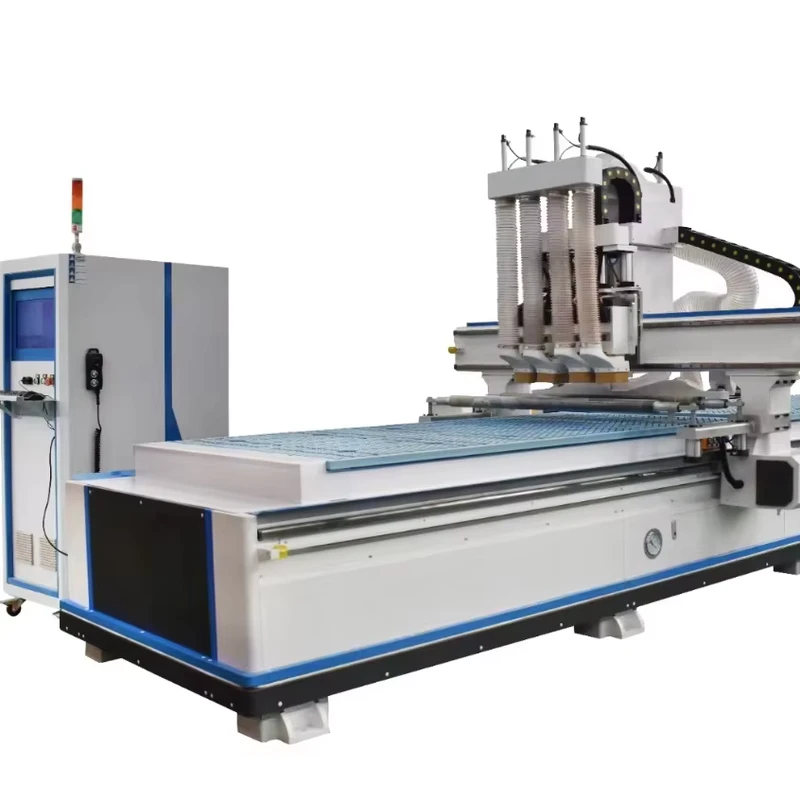

1530 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router
1530 Wooden Cabinet Door ATC Cnc Machining Center Auto Loading Wood Working Nesting Cnc Router
| Working Table Size(mm) | 1200x2440 | number of axes | 3 |
| voltage | AC380V/50-60Hz | machine type | CNC Router |
| No. of Spindles | Single | key selling points | Long Service Life |
| core components | Motor, Pressure Vessel, Engine, Gearbox, PLC, Pump, Bearing, Gear | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| Power (kW) | 9.6 | weight (kg) | 3800 |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 0.02 mm(0in) |
| travel (y axis)(mm) | 0.02 mm(0in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 9.6 | dimension(l*w*h) | 3500x2270x2200 |
| Product name | UE nesting cnc router | Spindle | 9.6kw Italy air cooling |
| Drive motors | Japan Yaskawa servo | Inverter power | 11kw Delta inverter |
| Control system | Syntec 6MB | Max. cutting speed | 50,000mm/min |
| Driver | Yaskawa Servo | X-Y movement | Rack and pinion, gear drive/Germany |
| Tool magazine | Auto 10pcs carousel tools changer | Table | Vacuum Table |
