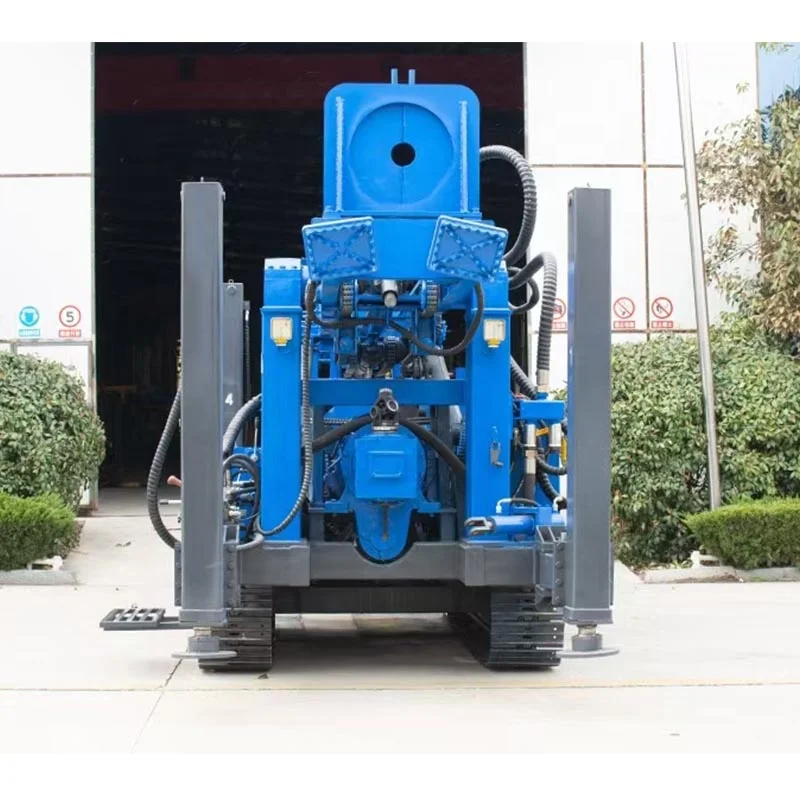

XJM 5 Diesel Powered Rotary Air Dual purpose Top Drive Soil Drilling Rig 240KN Lifting Force Crawler Mobility 75 220mm

XJM 5 Diesel Powered Rotary Air Dual purpose Top Drive Soil Drilling Rig 240KN Lifting Force Crawler Mobility 75 220mm
  • XJM 5 Diesel Powered Rotary Air Dual purpose Top Drive Soil Drilling Rig 240KN Lifting Force Crawler Mobility 75 220mm

    • XJM 5 Diesel Powered Rotary Air Dual purpose Top Drive Soil Drilling Rig 240KN Lifting Force Crawler Mobility 75 220mm

    Request a Quote
    UsageOreTypeRotary Drilling Rig
    Drilling DepthMax.100mDrilling Diameter75-220mm(2.95-8.66in), 75mm(2.95in)
    Power TypeDieselCore ComponentsEngine, Motor, Pump, Other
    Machinery Test ReportProvidedVideo outgoing-inspectionProvided
    Key Selling PointsCompetitive PriceWeight1100 KG(2425.08lb)
    Dimension(L*W*H)3800*3250*8500mm(149.61*127.95*334.65in)MobilityRubber/steel crawler
    Diesel engineYunneiDimension(transport)6300*2000*2650mm
    Drill head lifting force240KNDrill head feeding force180KN
    Drill pipe dia.60/76/89/102mm NQ/HQ/PQWalking speed0-2km/h
    Climbing angle20°Mechanical winch capacity80KN
    Mud pumpBW160/BW200/BW250 (Optional)
