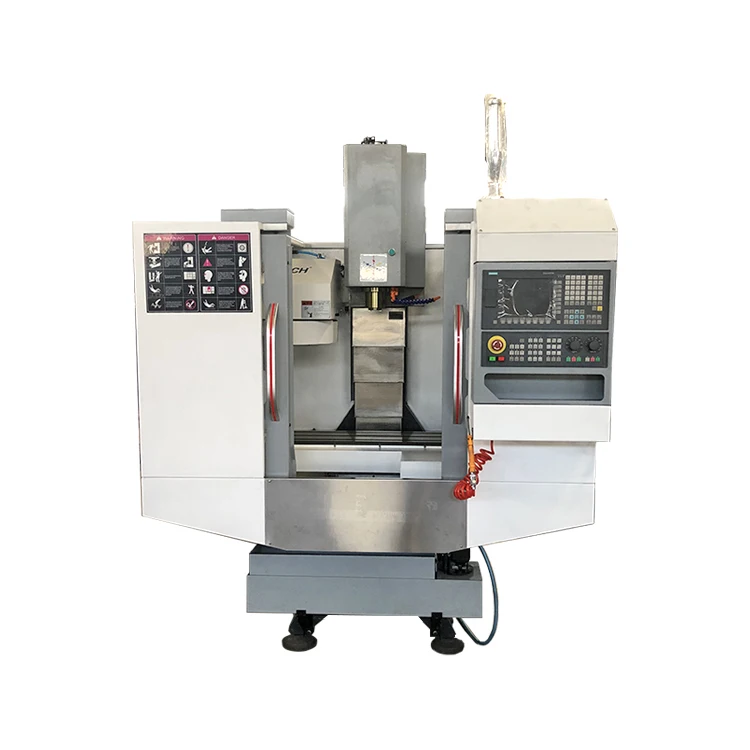

XH7122 CNC Vertical Machining Center Custom Vertical 3 Axis 5 Axis CNC Mini CNC Milling Machine Vmc Machine
XH7122 CNC Vertical Machining Center Custom Vertical 3 Axis 5 Axis CNC Mini CNC Milling Machine Vmc Machine
| type | VERTICAL | table travel (x) (mm) | 400 |
| table travel (y) (mm) | 220 | table travel (z) (mm) | 450 |
| repeatability (x/y/z) (mm) | ±0.001 | positioning accuracy | ±0.012 |
| spindle taper | BT30 | no. of spindles | Single |
| tool magazine capacity | 12, Other | cnc control system | GSK |
| machining capacity | Medium Duty | voltage | 380v |
| table size | 800x260 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 7 |
| key selling points | High Productivity | weight (t) | 1.05 |
| max. table load(kg) | 400 | dimension(l*w*h) | 1700*1500*2100mm(66.93*59.06*82.68in) |
| range of spindle speed | 80 - 6000 r.p.m | rapid feed speed | 0 - 6000 mm/min(0-236.22in/min) |
| Product name | Vertical machining center | MOQ | 1set |
| Magazine capacity handle | 12 | Machine Type | CNC Vertical Machine Centers |
| Keywords | Vertical Machine Center VMC | Control system | SIEMENS GSK SYNTEC FANUC MITSUBISHI(optional) |
| After-sales Service Provided | Service Machinery Overseas | Color | Customer Optional |
