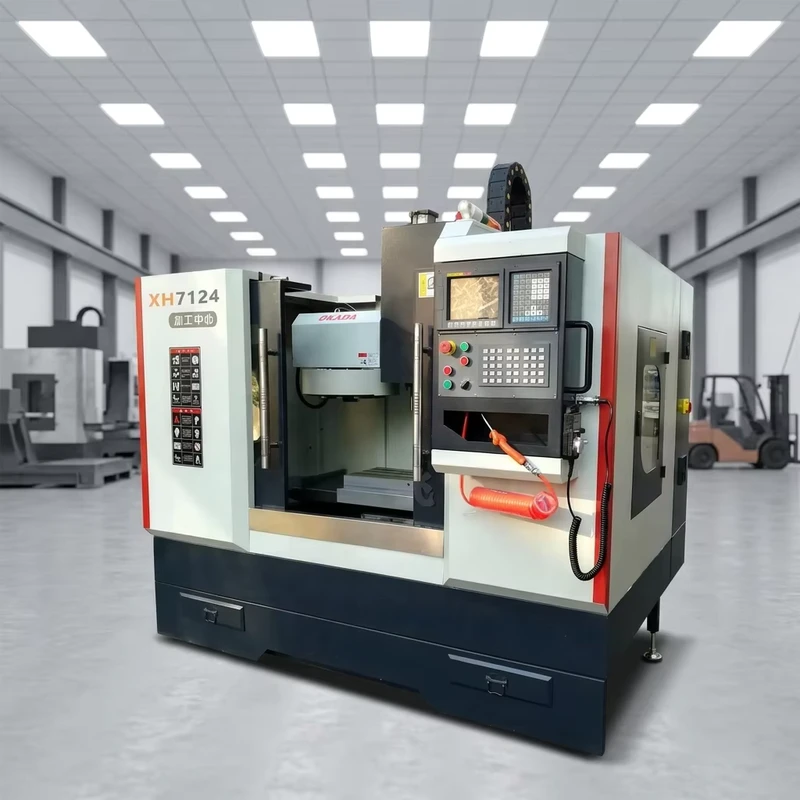

X7124 Vertical CNC Milling Machine 3 Axis Metal Machining Center High Precision Servo Motor For Mold Parts Processing
X7124 Vertical CNC Milling Machine 3 Axis Metal Machining Center High Precision Servo Motor For Mold Parts Processing
| type | VERTICAL | number of axes | 3 |
| voltage | 380v | table travel (x) (mm) | 430 |
| table travel (y) (mm) | 190 | table travel (z) (mm) | 400 |
| positioning accuracy | ±0.01 | repeatability (x/y/z) (mm) | ±0.005 |
| spindle taper | BT40 | cnc control system | GSK |
| machining capacity | Light Duty | no. of spindles | Single |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High Safety Level | max. table load(kg) | 100 |
| range of spindle speed | 1 - 8000 | dimension(l*w*h) | 1220*1380*1650 |
| weight | 900 | Machine Type | Vertical Machine Centers |
| CNC or Not | CNC | Function | Vertical Milling Machining |
| After-sales Service Provided | Engineers available to service machinery overseas | After Warranty Service | Online support |
| Table size | 800*240 | T Slot | 3-16-60 |
| Max speed of spindle (Rpm) | 8000 | Certification | CE ISO9001 |
| Local Service Location | None |
