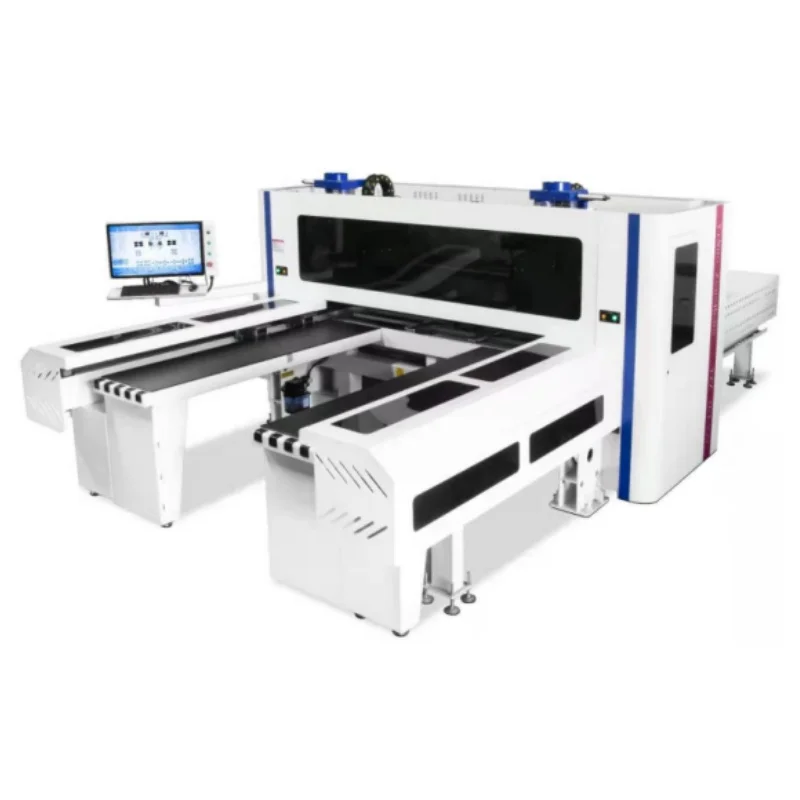

Woodworking Plywood Automatic Wood CNC 6 Sides Boring Machine Six Sided Drilling Machine

Woodworking Plywood Automatic Wood CNC 6 Sides Boring Machine Six Sided Drilling Machine
  • Woodworking Plywood Automatic Wood CNC 6 Sides Boring Machine Six Sided Drilling Machine

    • Woodworking Plywood Automatic Wood CNC 6 Sides Boring Machine Six Sided Drilling Machine

    Request a Quote
    max. drilling dia. (mm)32 mm(1.26in)typeDrilling & Milling Machine
    voltage380V 50hz 3phasecnc or notCNC
    machinery test reportProvidedcore componentsMotor, PLC
    video outgoing-inspectionProvidedkey selling pointsHigh Productivity
    range of spindle speed(r.p.m)1 - 18000 r.p.mpower (kw)18
    weight (kg)4000 KG(8818.49lb)drilling speed18000rmp
    dimension(l*w*h)5500*2700*2050mm(216.54*106.30*80.71in)NameCNC 6 Side Drilling Machine
    Top drilling group12 vertical +8 horizontal *2unitsBottom drilling group9 vertical*2units
    Drilling group motor power2.2kw(top drilling ) +2.2kw (bottom drilling)Spindle modelEr32
    Shank diameter10mmMotor power3.7kw (top spindle)*4pcs
    Spindle speed18000rpmMin panel width35mm
    Max panel width1220mm
