Professional manufacturer of woodworking machinery

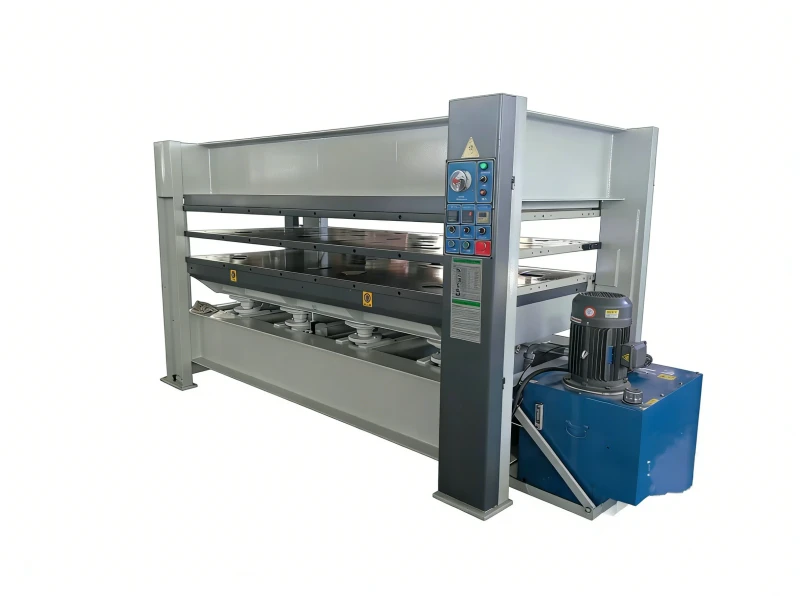

Woodworking Multi Layers Hot Press Machine Automatic Hydraulic Hot Press Machine for Door Making Veneer Plywood
Woodworking Multi Layers Hot Press Machine Automatic Hydraulic Hot Press Machine for Door Making Veneer Plywood
| type | Hot Press Machine | usage | Plywood Production |
| voltage | 220/380V | Platform Dimensions | 1500mm*3000mm(59.06in*118.11in) |
| core components | Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure Vessel, Engine, Other | Material Type | steel |
| video outgoing-inspection | Provided | key selling points | Automatic |
| power (kw) | 40 | weight (kg) | 2200 |
| dimension(l*w*h) | 3100*1350*2300MM(122.05*53.15*90.55in) | Power Source | Plywood hot press machine |
| Model | GD-1530 120T | Press platen dimensions | 1500*3000*42mm |
| Layers of heat plates | 3 layers /4 layers /5 layers | Number of heat plates | 4 /5/6 |
| Unit face pressure | 3.12kg/cm2 | Number of cylinders | 8sets |
| Cylinder diameter | 100mm | Closing speed | 40mm/s |
| Heating medium | Electrothermal dielectric cycling |
