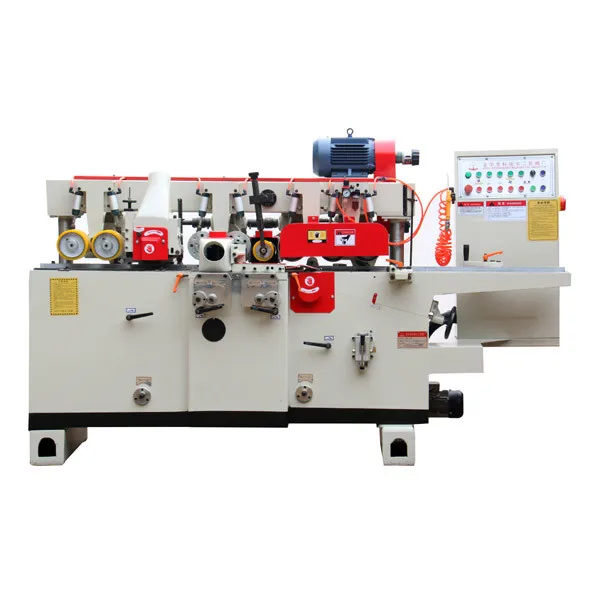

Woodworking Machine Four Side Wood Planer Moulder with Motor 14.35kW Power 380V Voltage

Woodworking Machine Four Side Wood Planer Moulder with Motor 14.35kW Power 380V Voltage
  • Woodworking Machine Four Side Wood Planer Moulder with Motor 14.35kW Power 380V Voltage

    • Woodworking Machine Four Side Wood Planer Moulder with Motor 14.35kW Power 380V Voltage

    Request a Quote
    typeFour Side Mouldermax.planing width(mm)130
    voltage380V or Customizedpower (kw)14.35
    Cutter TypeStraightcore componentsMotor
    sliding table equippedNomachinery test reportProvided
    Number Of Blades4video outgoing-inspectionProvided
    key selling pointsEasy To Operatemax.planing depth(mm)100
    weight (kg)1400dimension(l*w*h)2450*1300*1600mm(96.46*51.18*62.99in)
    Product NameFour Side Planer Moulder MachineFeeding speed(Stepless)10-30m/min
    Rotational speed of cutter shaft6000rpmCutter mounting diameter80-100mm
    Diameter of edge-trimming cutter120mmPower of feeding motor2.2kw
    Front bottom knife and right knife2.2kw*2Upper knife and left knife4kw
    Crossbeam Elevation0.75kwFunctionPlaning Wood Surface Smooth
