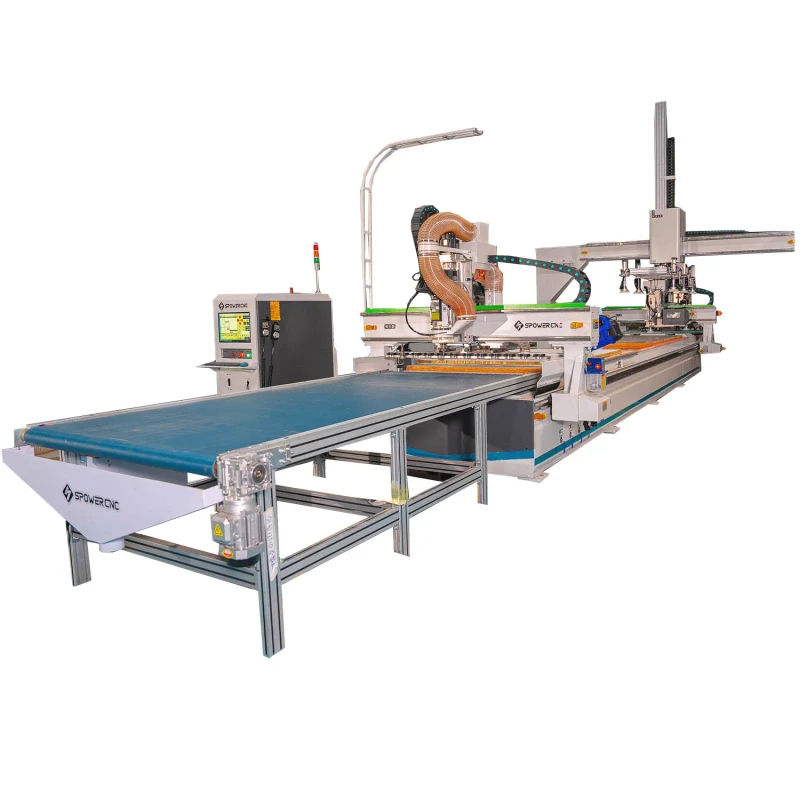

Woodworking CNC Machine Router 3 Axis ATC 8x4 for Wood Cutting 3D Carving Engraving With Loading and Unloading

Woodworking CNC Machine Router 3 Axis ATC 8x4 for Wood Cutting 3D Carving Engraving With Loading and Unloading
  • Woodworking CNC Machine Router 3 Axis ATC 8x4 for Wood Cutting 3D Carving Engraving With Loading and Unloading

    • Woodworking CNC Machine Router 3 Axis ATC 8x4 for Wood Cutting 3D Carving Engraving With Loading and Unloading

    Request a Quote
    number of axes4voltageAC380V/50HZ
    machine typeCNC RouterNo. of SpindlesATC
    key selling pointsEasy To Operatecore componentsBearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
    cnc or notCNCvideo outgoing-inspectionProvided
    machinery test reportProvidedweight (kg)2200
    range of spindle speed(r.p.m)1 - 24000 rpmpositioning accuracy (mm)0.01
    travel (x axis)(mm)1300travel (y axis)(mm)2500
    repeatability (x/y/z) (mm)0.01Spindle Motor Power (kw)9.6
    dimension(l*w*h)10000*2600*2500mm(393.70*102.36*98.43in)Table SurfacePVC Vacuum table
    ParametersWoodworking CNC Machine Router 3 Axis ATCInverterDelta inverter 11kw VFD
    SpindleItaly 9.6kwMax. Rapid Travel Rate70m/min
    Max. Working Speed50m/minDrive Motors4 sets 750W Yaskawa servo motor and driver
    USBSoftware CompatibilityOperating SystemTaiwan Syntec 610M control system Interface
    Command LanguageG Code
