Professional manufacturer of woodworking machinery

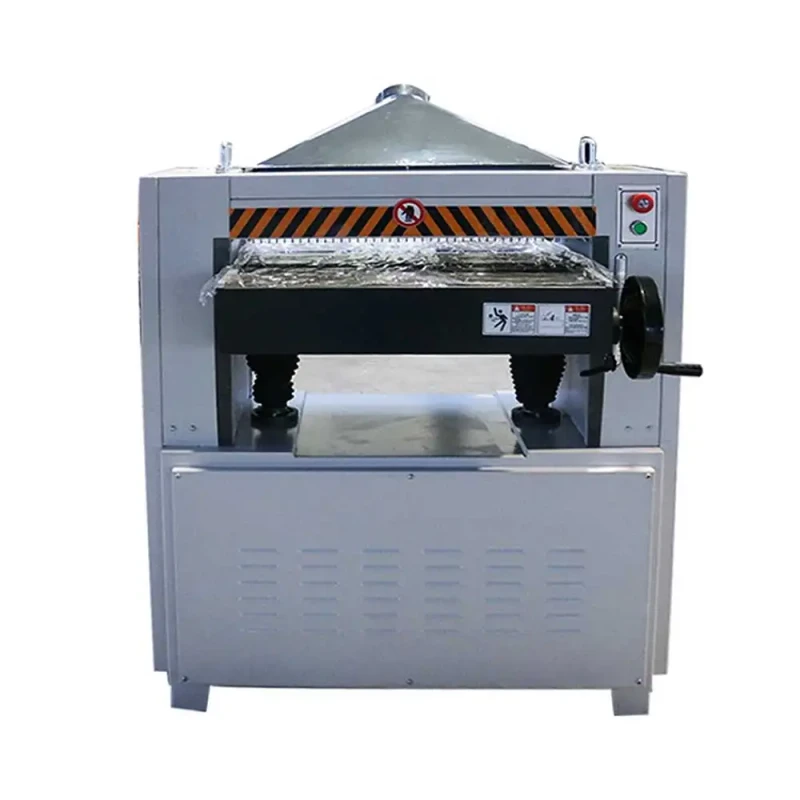

Wood Working Surface Planer and Thicknesser Wood Planer and Thicknesser
Wood Working Surface Planer and Thicknesser Wood Planer and Thicknesser
| type | Bench Planer | max.planing width(mm) | 400 |
| voltage | 380v 50hz 3phase or as your request | power (kw) | 4 |
| Feed Rates | 25 M/min(82.02ft/min), 20 m/min(65.62ft/min), 15 m/min(49.21ft/min), 10 m/min(32.81ft/min) | Cutter Type | Straight |
| core components | Gear, Pressure Vessel, Motor, Gearbox, Engine | sliding table equipped | No |
| machinery test report | Provided | Number Of Blades | 4 |
| video outgoing-inspection | Provided | key selling points | Easy To Operate |
| max.planing depth(mm) | 200 | weight (kg) | 340 |
| dimension(l*w*h) | 850x830x1230mm(33.46x32.68x48.43in) | Maximum Cutting(mm) Depth | 4 |
| Max. planing width (mm) | 400 | Max. planing depth (mm) | 200 |
| Motor power (kw) | 4 | Min.Planing thickness | 8mm |
| Min.Planing length | 220mm | Spindle Speed | 5000r/min |
| Feeding Speed | 8m/min;10m/min;12m/min | Max planing depth | 5mm |
| Blade number | 4 |
