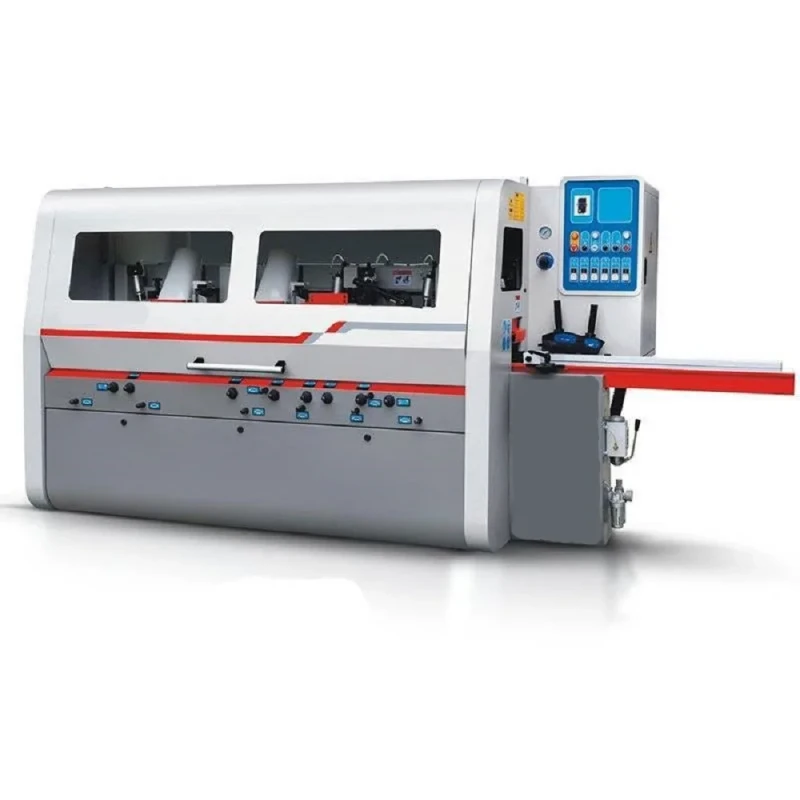

Wood Planer Moulder Machine Five Spindles Four Sides 25mmx550mmx880mm for Block Making Machine Molding 5 Head Wood 40mm

Wood Planer Moulder Machine Five Spindles Four Sides 25mmx550mmx880mm for Block Making Machine Molding 5 Head Wood 40mm
  • Wood Planer Moulder Machine Five Spindles Four Sides 25mmx550mmx880mm for Block Making Machine Molding 5 Head Wood 40mm

    • Wood Planer Moulder Machine Five Spindles Four Sides 25mmx550mmx880mm for Block Making Machine Molding 5 Head Wood 40mm

    Request a Quote
    typeFour Side Mouldermax.planing width(mm)160
    voltage380v 50hz 3phasepower (kw)25.06kw(33.61hp)
    Cutter TypeSpiralcore components/
    sliding table equippedNomachinery test reportProvided
    Number Of Blades5video outgoing-inspectionProvided
    key selling pointsAutomaticmax.planing depth(mm)120 mm(4.72in)
    weight (kg)2270 KG(5004.49lb)dimension(l*w*h)3170*1400*1680mm(124.80*55.12*66.14in)
    NameFour Sides MoulderWorking Width25-160mm
    Working Thickness8-120mmWorking table length1500mm
    Feeding Speed6-36m/minSpindle Diameter40mm
    Spindle Speed6500r/MinTotal Motor Power25.05kw
    Overall Dimension3170*1400*1680mmWeight2270kg
