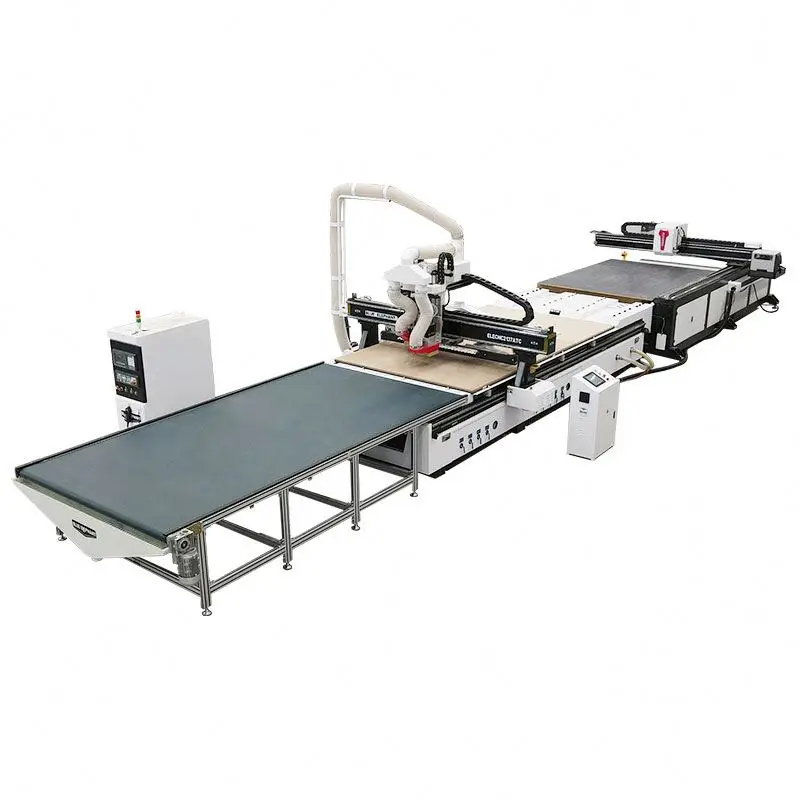

Wood Cabinet Production Line Kitchen Door Processing Equipment Wooden Assembly Machine CNC Working Router for Mold
Wood Cabinet Production Line Kitchen Door Processing Equipment Wooden Assembly Machine CNC Working Router for Mold
| Working Table Size(mm) | 2100*3700 | number of axes | 3 |
| voltage | AC380V (Option: 220V) | machine type | Nesting CNC Router |
| No. of Spindles | ATC | key selling points | Multifunctional |
| core components | Motor, Pump | cnc or not | CNC |
| video outgoing-inspection | Provided | machinery test report | Provided |
| weight (kg) | 2100 | range of spindle speed(r.p.m) | 1 - 24000 rpm |
| positioning accuracy (mm) | 0.02 mm(0in) | travel (x axis)(mm) | 2100 mm(82.68in) |
| travel (y axis)(mm) | 3700 mm(145.67in) | repeatability (x/y/z) (mm) | 0.02 mm(0in) |
| Spindle Motor Power (kw) | 9.0kw(12.07hp) | dimension(l*w*h) | 3200x2140x1850MM(125.98x84.25x72.83in) |
| Table Surface | T-slot and vacuum working table | Drive Motors | 850W Japan Yaskawa servo motor and servo driver |
| Spindle Power | ATC 9KW Italy air cooling spindle | Control system | Syntec control system with 1.8m control box |
| Vertical drill | vertical drill function for furniture or cabinet | Inverter | Taiwan Delta 11KW inverter |
| Option function | automatic labeling machine printer | Tool magazine | Linear tool changer 11pcs under gantry |
| Sensor | auto tool sensor | Loading and Unloading Platform | can be provided according to your needs |
