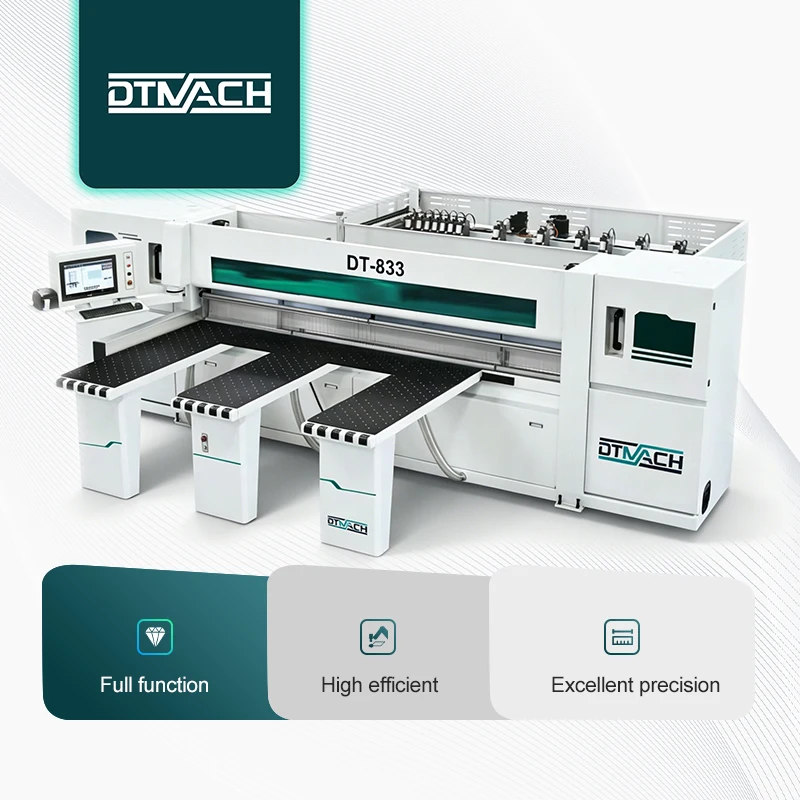

Wood Based Panels Machinery Wood Beam Saw Machine Computer CNC Panel Saw MDF Plywood Automatic Wood Cutting Machine

Wood Based Panels Machinery Wood Beam Saw Machine Computer CNC Panel Saw MDF Plywood Automatic Wood Cutting Machine
  • Wood Based Panels Machinery Wood Beam Saw Machine Computer CNC Panel Saw MDF Plywood Automatic Wood Cutting Machine

    • Wood Based Panels Machinery Wood Beam Saw Machine Computer CNC Panel Saw MDF Plywood Automatic Wood Cutting Machine

    Request a Quote
    TypePanel Sawvoltage380 V
    StyleHorizontaluseWoodworking
    core componentsPLC, Motormachinery test reportProvided
    Key Selling PointsEco-Friendly, Automatic, Easy To Operate, High-Accuracy, High Rigidity, Digitalvideo outgoing-inspectionProvided
    weight (kg)5000power (kw)26.5
    dimension(l*w*h)5710*6650*1900mm(224.80*261.81*74.80in)AUXILIARY SAW MOTOR POWER2.2KW
    MAXIMUM CUTTING WIDTH3300MMTRACTION MOTOR POWER1.8KW
    ROBOTIC SERVO MOTOR1.8KWSIDE-MOUNTED MOTOR0.55KW
    SAWING SPEED0-100 meters per minuteRETURN SPEED120 meters per minute
    HIGH-PRESSURE FAN4KWAIR PRESSURE0.6-0.8MPA
    AIR FLOTATION UNIT SPECIFICATIONS1750*540MM
