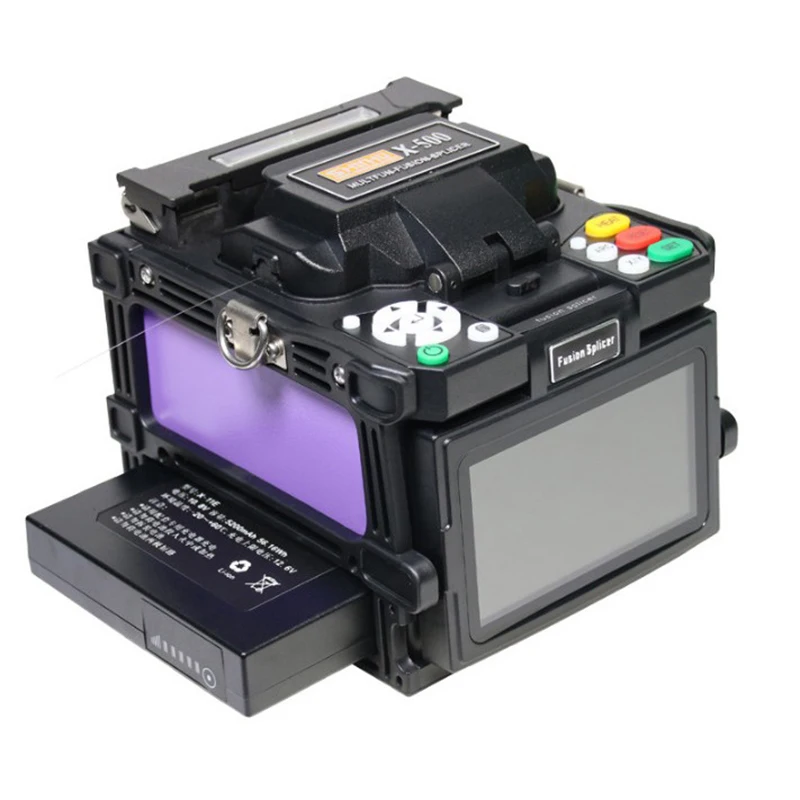

WL-X-500 Handheld Smart Fusion Splicer Fiber Optic Splicing Machine Fusion Splicer
WL-X-500 Handheld Smart Fusion Splicer Fiber Optic Splicing Machine Fusion Splicer
| Type | Fiber fusion splicer | Use | FTTX |
| Warranty Time | 1 year | Product name | Fabrique En Chine Shinho X-500 |
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655) | Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-900μm | Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB | Fibe cleaved length | 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups | Operate mode | Automatic/Manual |
| Auto-heating | Available |
