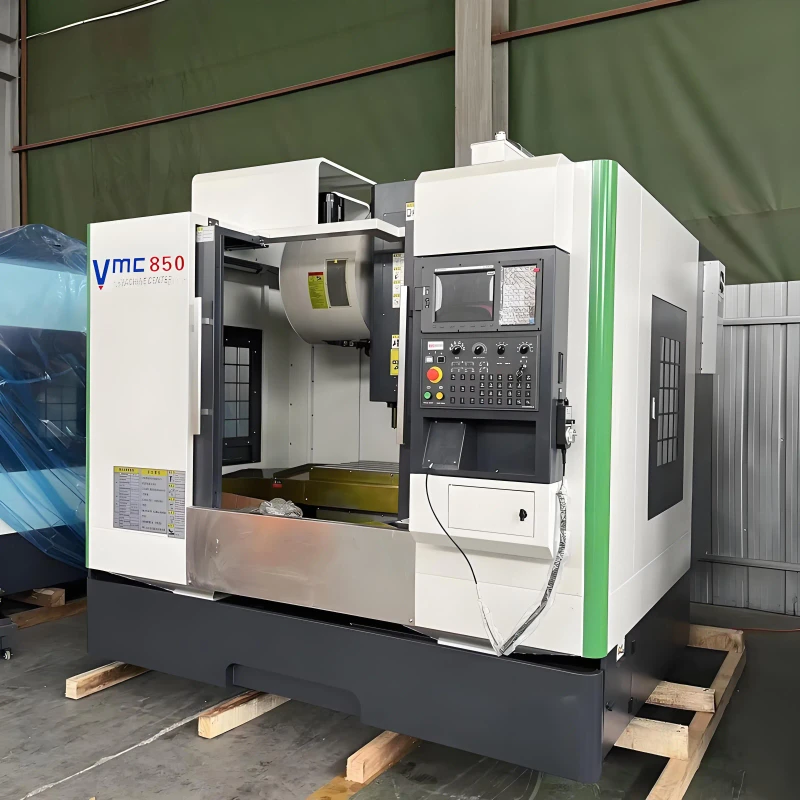

VMC850 Heavy Duty 3-Axis Vertical Machining Center High-Accuracy 3D High-Precision BT50 CNC Control BT40
VMC850 Heavy Duty 3-Axis Vertical Machining Center High-Accuracy 3D High-Precision BT50 CNC Control BT40
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 500 | table travel (z) (mm) | 500 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.003 |
| spindle taper | BT40, BT50 | no. of spindles | Single |
| tool magazine capacity | 16 | cnc control system | FANUC |
| machining capacity | Heavy Duty | voltage | 220V/380V |
| table size | 900*400 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Competitive Price, High-Accuracy | weight (t) | 4 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2300*1950*2450 |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 8000 mm/min(0.04-314.96in/min) |
| Product name | CNC Vertical Machining Center | Machine Type | CNC Vertical Machining Center |
| Keywords | Vmc Machine Center | CNC or Not | CNC Systemn |
| Control system | SIEMENS GSK FANUC (optional) | Max. Table Load(kg) | 500 Kg |
| Precision | High Precision High Accuracy | Spindle speed | 8000 Rpm |
| X/Y/Z Axis Travel | 800*500*500mm | Worktable size | 1000x500 Mm |
