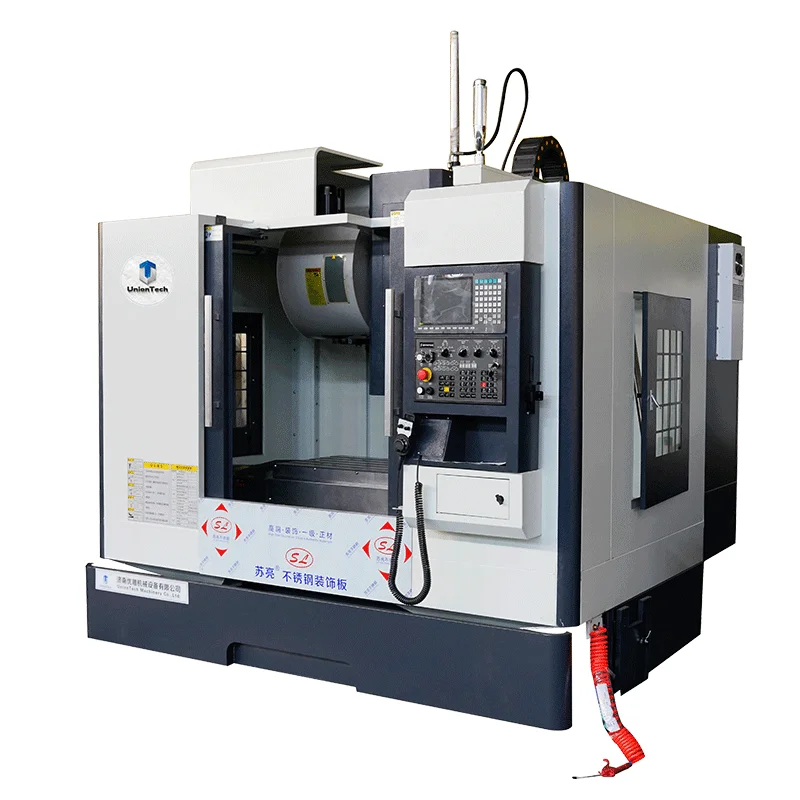

VMC850 3/4/5 Axis Vertical CNC Machining Center GSK FANUC SYNTEC Control BT40 Spindle CNC Milling Machine
VMC850 3/4/5 Axis Vertical CNC Machining Center GSK FANUC SYNTEC Control BT40 Spindle CNC Milling Machine
| type | VERTICAL | table travel (x) (mm) | 800 |
| table travel (y) (mm) | 550 | table travel (z) (mm) | 550 |
| repeatability (x/y/z) (mm) | 0.005 | positioning accuracy | 0.0075 |
| spindle taper | BT40 | no. of spindles | Single |
| tool magazine capacity | 24 | cnc control system | SYNTEC |
| machining capacity | Heavy Duty | voltage | 220V/380V |
| table size | 1000X500 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 2 |
| key selling points | Automatic | weight (t) | 5 |
| max. table load(kg) | 500 | dimension(l*w*h) | 2600*2300*2800mm(102.36*90.55*110.24in) |
| range of spindle speed | 1 - 8000 r.p.m | rapid feed speed | 1 - 6000 mm/min(0.04-236.22in/min) |
| Model | 3 axis VMC850 cnc milling machine | Working area | 800*550*550mm |
| Control system | SYNTEC controller ( SIEMENS/GSK/FANUC/KND as optional) | Spindle | 7.5kw mechanical spindle with 8000RPM, BT40 |
| Optional parts | Chip Removal System / Renishaw Edge Finder / Center Water Outlet | Guide rail | Taiwan HIWIN & Taiwan TBI guide rail( Japan NACHI as optional) |
| Optional model | VMC650/VMC850/VMC1160/VMC1370/VMC1580 machining center | Certification | Certified by CE/TUV/ISO |
| After sales | 24/7 Online Technical Support/Overseas Engineer On-site Service |
