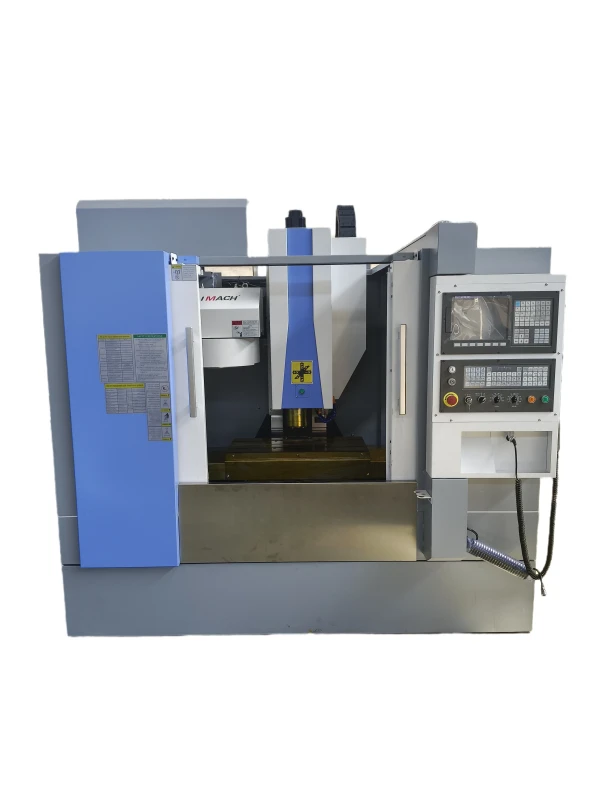

VMC650 CNC Vertical Machining Center Centering Machining Axis Machining Center

VMC650 CNC Vertical Machining Center Centering Machining Axis Machining Center
  • VMC650 CNC Vertical Machining Center Centering Machining Axis Machining Center

    • VMC650 CNC Vertical Machining Center Centering Machining Axis Machining Center

    Request a Quote
    typeVERTICALnumber of axes4
    voltageCustomer's Requirementtable travel (x) (mm)650 mm(25.59in)
    table travel (y) (mm)400 mm(15.75in)table travel (z) (mm)500 mm(19.69in)
    positioning accuracy0.01repeatability (x/y/z) (mm)0.003
    spindle taperBT40-120BTcnc control systemFANUC
    machining capacityHeavy Dutyno. of spindles4
    machinery test reportProvidedvideo outgoing-inspectionProvided
    key selling pointsHigh-Accuracymax. table load(kg)500
    range of spindle speed100 - 8000dimension(l*w*h)2500mm*2000 mm*2300mm(98.43in*78.74in*90.55in)
    weight3300CNC or NotCNC
    NameVMC650 Machine Tool High Precision 4 Axis Metal CNC Milling MachineMachine TypeCNC Vertical Machining Center
    ApplicationMetal MachiningTable size800*400mm
    Spindle Speed8000rpmSpindle taperBT40-120
    CNC ControllerSYNTEC/KND/SIEMENS/FANUCTravel for X, Y, Z axis650/400/500mm
    ATC16 Tools
