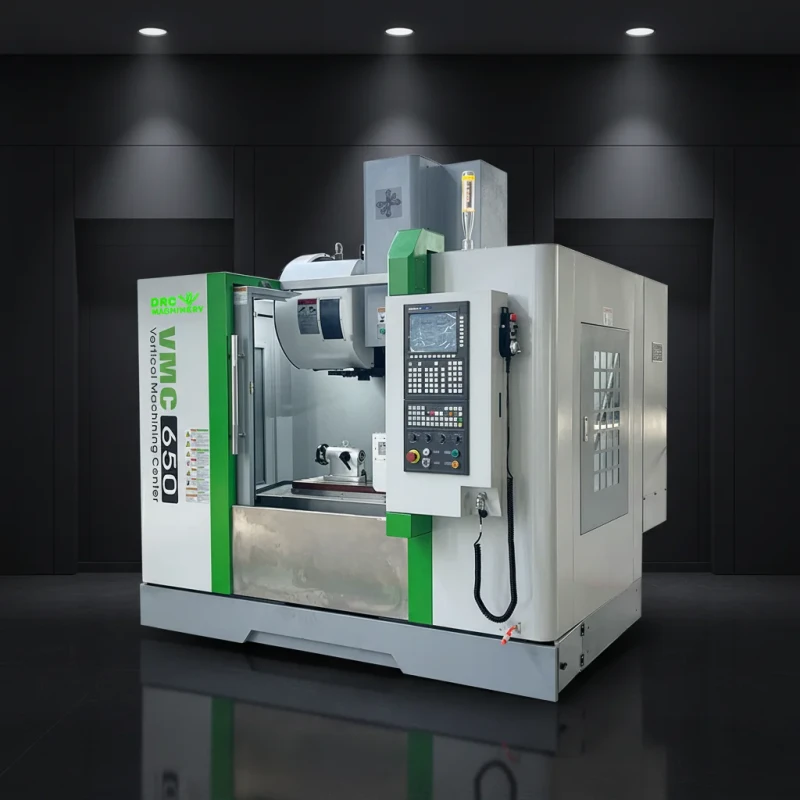

VMC650 5 Axis Automatic Vertical CNC Machining Center Linear Guide Rails

VMC650 5 Axis Automatic Vertical CNC Machining Center Linear Guide Rails
  • VMC650 5 Axis Automatic Vertical CNC Machining Center Linear Guide Rails

    • VMC650 5 Axis Automatic Vertical CNC Machining Center Linear Guide Rails

    Request a Quote
    typeVERTICALtable travel (x) (mm)650mm(25.59in)
    table travel (y) (mm)500mm(19.69in)table travel (z) (mm)500mm(19.69in)
    repeatability (x/y/z) (mm)±0.005positioning accuracy±0.008
    spindle taperBT40no. of spindlesSingle
    tool magazine capacity16cnc control systemGSK
    machining capacityMedium Dutyvoltage380V/50HZ
    table size900*400mm(35.43*15.75in)machinery test reportProvided
    video outgoing-inspectionProvidedmin. time of tool change(s)2
    key selling pointsAutomaticweight (t)3.8
    max. table load(kg)400dimension(l*w*h)2300*2200*2400mm(90.55*86.61*94.49in)
    range of spindle speed50 - 8000 r.p.mrapid feed speed1000 - 2400 mm/min(39.37-94.49in/min)
    Product nameVMC650 Used cnc Vertical Machining CenterX/Y/Z axis travel650/500/500mm
    X/Y/Z Motor Torque11/11/15N.mSpindle face to table distance120-620mm
    Worktable size900*400mmX/Y/Z axis rapid movement rate20/20/18 m/min
    Feed moving velocity X, Y, Z1-10m/minSpindle taperBT40-120
    Range of spindle speed8000rpm(Optional:10000 )Vmc65016 Tool Magazine Small 3 4 Axis 5-Axis Cnc Milling Machine Center
