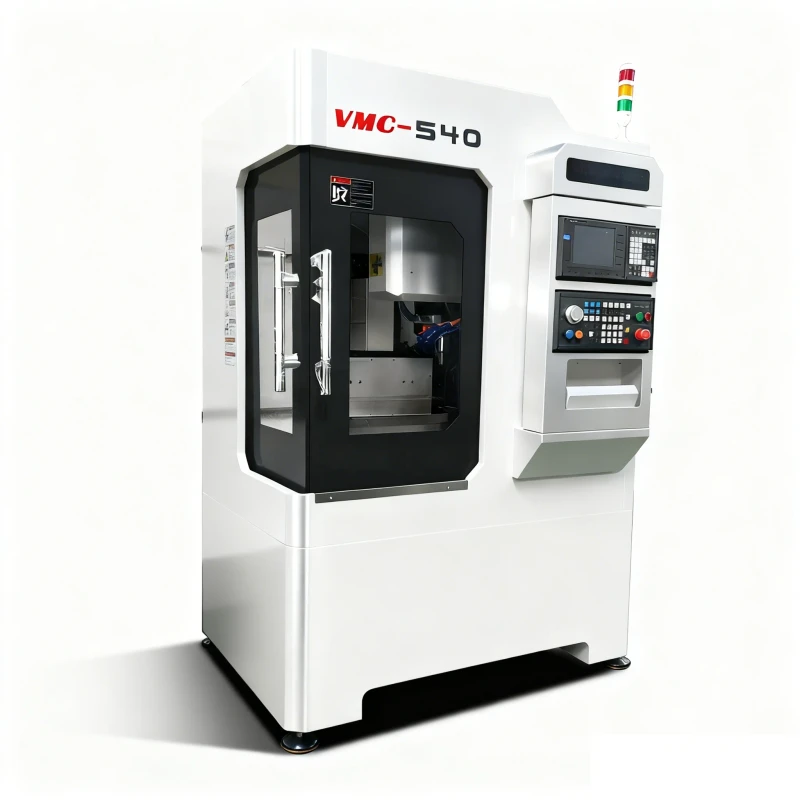

VMC540 Vertical Machining Center Metal Working Machine for Steel Aluminum Copper Factory Direct Sale Automated Mini CNC Milling
VMC540 Vertical Machining Center Metal Working Machine for Steel Aluminum Copper Factory Direct Sale Automated Mini CNC Milling
| type | VERTICAL | table travel (x) (mm) | 400 |
| table travel (y) (mm) | 500 | table travel (z) (mm) | 200 |
| repeatability (x/y/z) (mm) | ±0.003 | positioning accuracy | ±0.01 |
| spindle taper | BT30 | no. of spindles | Single |
| tool magazine capacity | 8 | cnc control system | GSK |
| machining capacity | Medium Duty | voltage | 220 V, 380 V |
| table size | 500*400 | machinery test report | Provided |
| video outgoing-inspection | Provided | min. time of tool change(s) | 3 |
| key selling points | High-Accuracy | weight (t) | 1.9 |
| max. table load(kg) | 200 | dimension(l*w*h) | 1350*1350*2050 |
| range of spindle speed | 0 - 24000 | rapid feed speed | 0 - 10000 |
| CNC or Not | CNC High Speed Machining Center | Keywords | Cnc 3 Axis Milling Machine |
| Control system | SIEMENS GSK SYNTEC FANUC MITSUBISHI(optional) | Spindle Speed | 24000rpm |
| After-sales Service Provided | Online Support | Color | Customer Optional |
